Test Mode Procedure [10/2016 - 09/2020]

WARNING LIGHT AND INDICATOR LIGHT INITIAL CHECK

Release the parking brake.
NOTE:
Before releasing the parking brake, move the shift lever to P.

HINT:

When the parking brake is applied or the brake fluid level is low, the brake warning light comes on.

When the engine switch is turned on (IG), check that the ABS warning, brake warning, VSC OFF indicator and slip indicator lights all come on for approximately 3 seconds.

HINT:

If the skid control ECU (brake actuator assembly) stores a DTC, the ABS warning and slip indicator lights will come on.
If any of the indicators remains on or does not come on, proceed to troubleshooting for the light circuits listed below.

Trouble Area	See Procedure
ABS warning light circuit (Remains on)	Refer to ABS Warning Light Remains ON [10/2016 - 10/2017] , or refer to ABS Warning Light Remains ON [10/2017 - 09/2020]
ABS warning light circuit (Does not come on)	Refer to ABS Warning Light does not Come ON [04/2013 - 09/2020]
Brake warning light circuit (Remains on)	Refer to Brake Warning Light Remains ON [10/2016 - 10/2017] , or refer to Brake Warning Light Remains ON [10/2017 - 09/2020]
Brake warning light circuit (Does not come on)	Refer to Brake Warning Light does not Come ON [04/2013 - 09/2020]
VSC OFF indicator light circuit (Remains on)	Refer to VSC OFF Switch Circuit [10/2016 - 10/2017] , or refer to VSC OFF Switch Circuit [10/2017 - 09/2020]
VSC OFF indicator light circuit (Does not come on)	Refer to VSC OFF Switch Circuit [10/2016 - 10/2017] , or refer to VSC OFF Switch Circuit [10/2017 - 09/2020]
Slip indicator light circuit (Remains on)	Refer to Slip Indicator Light Remains ON [10/2016 - 10/2017] , or refer to Slip Indicator Light Remains ON [10/2017 - 09/2020]
Slip indicator light circuit (Does not come on)	Refer to Slip Indicator Light does not Come ON [04/2013 - 09/2020]

SENSOR CHECK USING TEST MODE (SIGNAL CHECK) (When Using Techstream)

HINT:

VSC does not operate in Test Mode (signal check), regardless of whether the sensor check is normal or abnormal.
When a malfunction occurs in an ABS system sensor, the ABS warning light illuminates.
When a malfunction occurs in a VSC system sensor, the slip indicator light illuminates.

Procedure to enter Test Mode

Turn the engine switch off.
Check that the steering wheel is centered.
Apply the parking brake.
Check that the shift lever is in P.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.

Switch the skid control ECU (brake actuator assembly) to Test Mode using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Signal Check.

Chassis > ABS/VSC/TRAC > Utility

Tester Display
Signal Check

Check that the ABS warning and slip indicator lights come on for several seconds and then blink in the Test Mode pattern.
HINT:

If the ABS warning and slip indicator lights do not blink, inspect the ABS warning and slip indicator light circuits.
Check the ABS sensors.
HINT:

Check that the ABS warning light is blinking in the Test Mode pattern before performing the following ABS sensor checks.

Acceleration Sensor Check
1. Keep the vehicle stationary on a level surface for 1 second or more.
  HINT:

  The acceleration sensor check can be performed by following the master cylinder pressure sensor check procedure below.
Lost Booster Pressure Judgment Check and Master Cylinder Pressure Sensor Zero Point Calibration
1. Depress the brake pedal several times to release vacuum from the brake booster assembly with the engine stopped.
2. Turn the engine switch on (IG).
3. Check that the brake warning light comes on when depressing the brake pedal with a force of 59.0 N (6.0 kgf, 13.2 lbf) or more for 1 second or more. (The lost booster pressure state is judged to be normal.)
4. Start the engine while depressing the brake pedal with a force of 59.0 N (6.0 kgf, 13.2 lbf) or more for 1 second or more.
5. Check that the brake warning light goes off when quickly releasing the brake pedal. (The lost booster pressure state is judged to be normal.)
6. Leave the vehicle for 1 second or more. (Master cylinder pressure sensor zero point calibration)
  NOTE:
  - If depressing the brake pedal slowly or repeatedly, the master cylinder pressure sensor zero point calibration is not performed normally.
  - If the lost booster pressure judgment check results are not normal, then the master cylinder pressure sensor check cannot be performed.
  - If rechecking after the engine has started, end Test Mode, enter Test Mode again, and release vacuum in the booster by pumping the brake pedal prior to rechecking.
  HINT:

  If the lost booster pressure state is not judged to be normal, the brake warning light comes on and Test Mode (signal check) inspection item (Output Master Cylinder Pressure Sensor) is displayed.
Master Cylinder Pressure Sensor Check
1. Leave the vehicle in a stationary condition and release the brake pedal for 1 second or more, and quickly and continuously depress the brake pedal with a force greater than 98 N (10 kgf, 22.0 lbf) for 1 second.
2. Check that the ABS warning light stays on for 3 seconds.
  HINT:
  - Confirm that the ABS warning light comes on.
  - While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22.0 lbf) or more.
  - The ABS warning light comes on for 3 seconds every time the preceding brake pedal operation is performed.
Speed Sensor Check
1. Drive the vehicle straight-ahead.
  Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds.

  HINT:
  - The sensor check may not complete if wheelspin occurs.
  - The ABS warning light comes on immediately if a malfunction is detected during the speed sensor check.
  NOTE:
  - The speed sensor check may not complete if the speed sensor check is started while turning the steering wheel or spinning the wheels.
  - After the ABS warning light goes off, if vehicle speed exceeds 80 km/h (50 mph), a sensor check code will be stored again. Decelerate or stop the vehicle before the speed reaches 80 km/h (50 mph).
2. Check that the ABS warning light goes off.
  HINT:
  - The ABS warning light goes off when the sensor check has completed.
  - The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor check.
3. Stop the vehicle.
  HINT:

  When the sensor check has completed, the ABS warning light goes off while the vehicle is being driven, and blinks in the Test Mode pattern while the vehicle is stopped.

  NOTE:
  If the sensor check has not completed, the ABS warning light will blink while the vehicle is being driven and the ABS will not operate.
VSC Sensor Check
HINT:

Check that the slip indicator light is blinking in the Test Mode pattern before performing the following VSC sensor check.
Yaw Rate Sensor Zero Point Check
1. Check that the shift lever is in P.
2. Keep the vehicle stationary on a level surface for 5 seconds or more after the engine switch is turned on (IG).
VSC OFF Switch (Combination Switch Assembly) Check
1. Press the VSC OFF switch (combination switch assembly).
2. Check that the VSC OFF indicator light comes on.
3. Press the VSC OFF switch (combination switch assembly) again.
End of Sensor Check
1. If the sensor check is completed, the ABS warning light and slip indicator light blink (Test Mode (signal check)) when the vehicle stops and the ABS warning light is off while the vehicle is being driven.
  NOTE:
  - When Test Mode (signal check) is started with the Techstream and all items display complete, the sensor check ends.
  - If the sensor check is not complete, the ABS warning light blinks when the vehicle is in motion and the ABS does not operate.
  - If a DTC is detected in Test Mode (signal check), the ABS warning light or slip indicator light illuminates.
End of Test Mode (Signal Check)
1. End Test Mode (signal check) using the Techstream
  1. Turn the engine switch off and enter normal mode.
  2. Remove the Techstream.

Test Mode (Signal Check) Inspection Item Chart

Item Name	Range	Judgment Description	Trouble Area
Output Signal of Front Speed Sensor RH	Incomplete/complete	Check for foreign matter, check the gap between the sensor and rotor	Open or short in speed sensor Open or short in sensor system wire harness Defective connector contact or increased terminal resistance Speed sensor installation defect Sensor rotor system malfunction
Output Signal of Front Speed Sensor LH	Incomplete/complete	Check for foreign matter, check the gap between the sensor and rotor	Open or short in speed sensor Open or short in sensor system wire harness Defective connector contact or increased terminal resistance Speed sensor installation defect Sensor rotor system malfunction
Output Signal of Rear Speed Sensor RH	Incomplete/complete	Check for foreign matter, check the gap between the sensor and rotor	Open or short in speed sensor Open or short in sensor system wire harness Defective connector contact or increased terminal resistance Speed sensor installation defect Sensor rotor system malfunction
Output Signal of Rear Speed Sensor LH	Incomplete/complete	Check for foreign matter, check the gap between the sensor and rotor	Open or short in speed sensor Open or short in sensor system wire harness Defective connector contact or increased terminal resistance Speed sensor installation defect Sensor rotor system malfunction
Change in Output Signal of Front Speed Sensor RH	Incomplete/complete	Check the stability of the sensor input waveform Check the straight ahead / reverse signal inputs	Foreign object attached to speed sensor Sensor rotor system malfunction
Change in Output Signal of Front Speed Sensor LH	Incomplete/complete	Check the stability of the sensor input waveform Check the straight ahead / reverse signal inputs	Foreign object attached to speed sensor Sensor rotor system malfunction
Change in Output Signal of Rear Speed Sensor RH	Incomplete/complete	Check the stability of the sensor input waveform Check the straight ahead / reverse signal inputs	Foreign object attached to speed sensor Sensor rotor system malfunction
Change in Output Signal of Rear Speed Sensor LH	Incomplete/complete	Check the stability of the sensor input waveform Check the straight ahead / reverse signal inputs	Foreign object attached to speed sensor Sensor rotor system malfunction
Output Voltage Deceleration Sensor	Incomplete/complete	Check the acceleration sensor output voltage	Acceleration sensor zero point stored incorrectly Acceleration sensor connector connection malfunction Acceleration sensor internally stuck Defective acceleration sensor installation
Memory System Information	Incomplete/complete	Check stored system information (skid control ECU (brake actuator assembly)) against vehicle specification	ECM incorrectly installed Brake actuator assembly incorrectly installed CAN communication between ECM and skid control ECU (brake actuator assembly)
Output Master Cylinder Pressure Sensor	Incomplete/complete	Check the master cylinder pressure sensor zero point voltage Check that the sensitivity of the master cylinder pressure sensor is normal	Open circuit or short in master cylinder pressure sensor circuit Open or short in stop light switch assembly circuit or defective connector connection Stop light switch assembly stuck OFF
Judgment of Failure State	Incomplete/complete	Check that the brake pedal load sensing switch is normal	Open or short in brake pedal load sensing switch system wire harness Brake pedal load sensing switch stuck ON/OFF

SENSOR CHECK USING TEST MODE (SIGNAL CHECK) (When Using SST Check Wire)

HINT:

VSC does not operate in Test Mode (signal check), regardless of whether the sensor check is normal or abnormal.
When a malfunction occurs in an ABS system sensor, the ABS warning light illuminates.
When a malfunction occurs in a VSC system sensor, the slip indicator light illuminates.

Procedure to enter Test Mode

Turn the engine switch off.
Check that the steering wheel is centered.
Apply the parking brake.
Check that the shift lever is in P.

Using SST, connect terminals TS and CG of the DLC3.

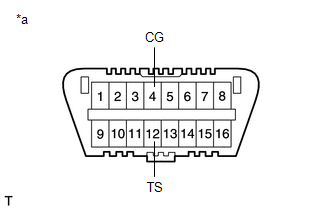

Fig 1: DLC3 Connector Terminals Identification

*a	Front view of DLC3

SST: 09843-18040

Turn the engine switch on (IG).
Check that the ABS warning and slip indicator lights come on for several seconds and then blink in the Test Mode pattern.
HINT:

If the ABS warning and slip indicator lights do not blink, inspect the TS and CG terminal circuit and ABS warning and slip indicator light circuits.
Check the ABS sensors.
HINT:

Check that the ABS warning light is blinking in the Test Mode pattern before performing the following ABS sensor checks.

Acceleration Sensor Check
1. Keep the vehicle stationary on a level surface for 1 second or more.
  HINT:

  The acceleration sensor check can be performed by following the master cylinder pressure sensor check procedure below.
Lost Booster Pressure Judgment Check and Master Cylinder Pressure Sensor Zero Point Calibration
1. Depress the brake pedal several times to release vacuum from the brake booster assembly with the engine stopped.
2. Turn the engine switch on (IG).
3. Check that the brake warning light comes on when depressing the brake pedal with a force of 59.0 N (6.0 kgf, 13.2 lbf) or more for 1 second or more. (The lost booster pressure state is judged to be normal.)
4. Start the engine while depressing the brake pedal with a force of 59.0 N (6.0 kgf, 13.2 lbf) or more for 1 second or more.
5. Check that the brake warning light goes off when quickly releasing the brake pedal. (The lost booster pressure state is judged to be normal.)
6. Leave the vehicle for 1 second or more. (Master cylinder pressure sensor zero point calibration)
  NOTE:
  - If depressing the brake pedal slowly or repeatedly, the master cylinder pressure sensor zero point calibration is not performed normally.
  - If the lost booster pressure judgment check results are not normal, then the master cylinder pressure sensor check cannot be performed.
  - If rechecking after the engine has started, end Test Mode, enter Test Mode again, and release vacuum in the booster by pumping the brake pedal prior to rechecking.
Master Cylinder Pressure Sensor Check
1. Leave the vehicle in a stationary condition and release the brake pedal for 1 second or more, and quickly and continuously depress the brake pedal with a force greater than 98 N (10 kgf, 22.0 lbf) for 1 second.
2. Check that the ABS warning light stays on for 3 seconds.
  HINT:
  - Confirm that the ABS warning light comes on.
  - While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22.0 lbf) or more.
  - The ABS warning light comes on for 3 seconds every time the preceding brake pedal operation is performed.
Speed Sensor Check
1. Drive the vehicle straight-ahead.
  Accelerate the vehicle to a speed of 45 km/h (28 mph) or more for several seconds.

  NOTE:
  The speed sensor check may not complete if the speed sensor check is started while turning the steering wheel or spinning the wheels.

  HINT:
  - The sensor check may not complete if wheelspin occurs.
  - The ABS warning light comes on immediately if a malfunction is detected during the speed sensor check.
2. Check that the ABS warning light goes off.
  HINT:
  - The ABS warning light goes off when the sensor check has completed.
  - The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor check.
3. Stop the vehicle.
  NOTE:
  If the sensor check has not completed, the ABS warning light will blink while the vehicle is being driven and the ABS will not operate.

  HINT:

  When the sensor check has completed, the ABS warning light goes off while the vehicle is being driven, and blinks in the Test Mode pattern while the vehicle is stopped.
VSC Sensor Check
HINT:

Check that the slip indicator light is blinking in the Test Mode pattern before performing the following VSC sensor check.
VSC OFF Switch (Combination Switch Assembly) Check
1. Press the VSC OFF switch (combination switch assembly).
2. Check that the VSC OFF indicator light comes on.
3. Press the VSC OFF switch (combination switch assembly) again.
End of Sensor Check
1. If the sensor checks have completed, the ABS warning light blinks in the Test Mode pattern when the vehicle is stopped and the ABS warning light goes off while the vehicle is being driven.
  NOTE:
  If the sensor checks have not completed, the ABS warning light will blink while the vehicle is being driven and the ABS will not operate.
