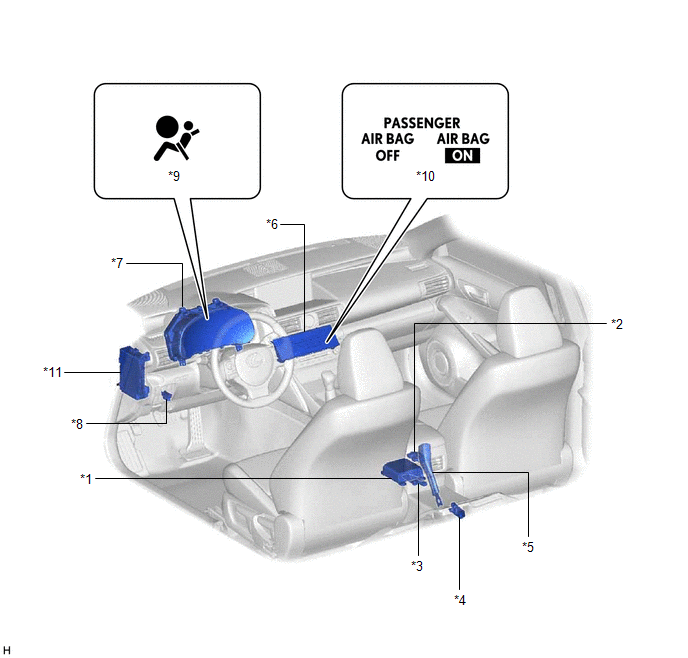

Parts Location [04/2013 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | OCCUPANT DETECTION ECU |
| *3 | FRONT OCCUPANT CLASSIFICATION SENSOR LH (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH) | *4 | REAR OCCUPANT CLASSIFICATION SENSOR LH (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH) |
| *5 | PASSENGER SIDE BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH) | *6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | SRS WARNING LIGHT | *10 | PASSENGER AIRBAG ON/OFF INDICATOR |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ODS FUSE - IG1 NO. 3 FUSE |
- | - |
