Installation [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FOG LIGHT ASSEMBLY
    1. Engage the 2 guides to temporarily install the fog light assembly.
    2. Install the fog light assembly with the screw.
  2. INSTALL AIR INTAKE DUCT
    1. Engage the guide and 2 claws.
    2. Install the clip.
    3. Install the 2 screws.
    4. Install the intake duct with the 2 pin hold clips as shown in the illustration.
      NOTE:

      Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.

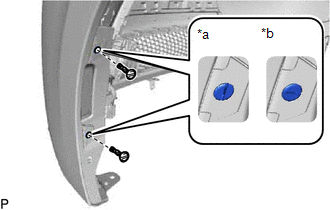

      GTY467700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
    5. Engage each clamp.
  3. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [04/2013 - 10/2016]
