Components [04/2013 - 10/2016]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

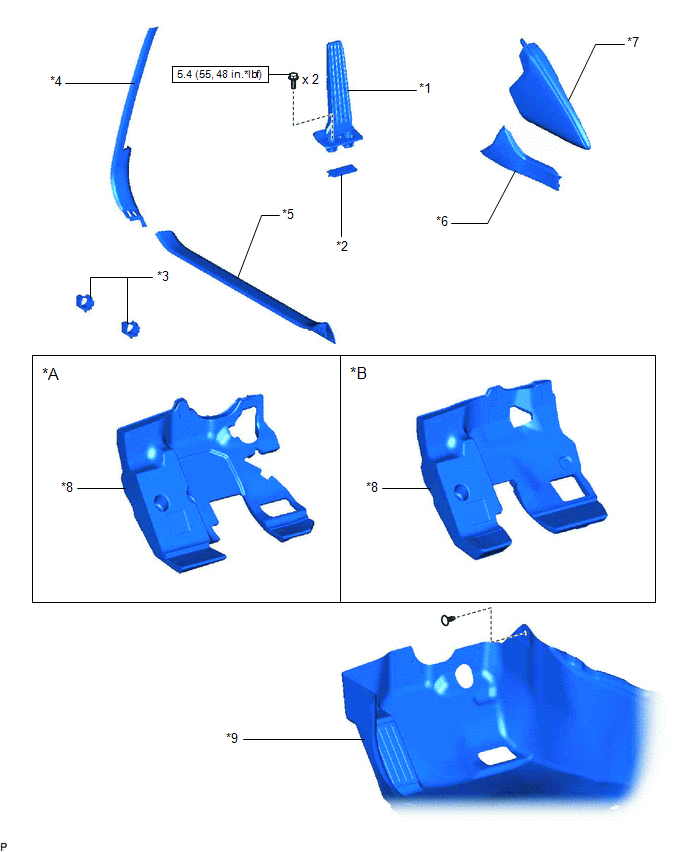

Fig 1: Headlight Leveling ECU Replacement Components With Torque Specifications [04/2013 - 10/2016] (1 Of 2)
| *A | for 2WD | *B | for AWD |
| *1 | ACCELERATOR PEDAL ASSEMBLY | *2 | ACCELERATOR PEDAL PAD |
| *3 | FLOOR CARPET HOOK | *4 | FRONT DOOR OPENING TRIM COVER LH |
| *5 | FRONT DOOR SCUFF PLATE LH | *6 | FRONT NO. 1 CONSOLE BOX INSERT |
| *7 | INSTRUMENT PANEL FINISH PANEL END LH | *8 | NO. 3 DASH PANEL INSULATOR PAD |
| *9 | FRONT FLOOR MAT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

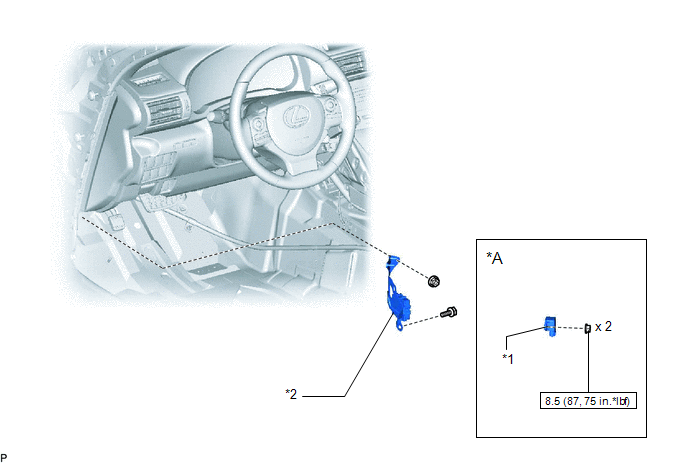

Fig 2: Headlight Leveling ECU Replacement Components With Torque Specifications [04/2013 - 10/2016] (2 Of 2)
| *A | w/ AVS | - | - |
| *1 | ACCELERATION SENSOR | *2 | HEADLIGHT LEVELING ECU ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
