Components [04/2013 - 10/2016]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

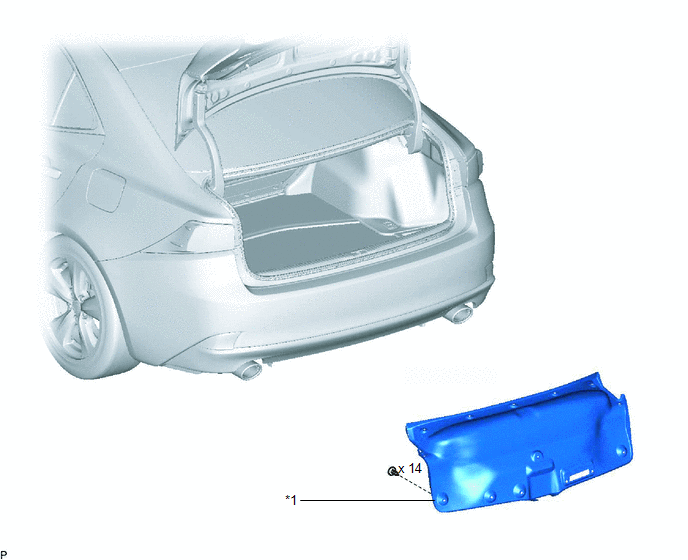

| *1 | LUGGAGE COMPARTMENT DOOR COVER | - | - |

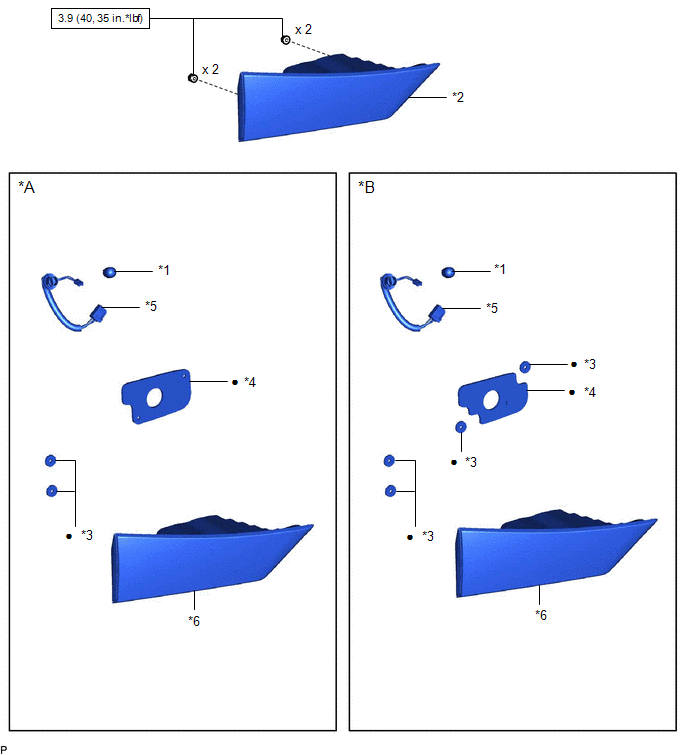

Fig 2: Rear Light Assembly Replacement Components With Torque Specifications [04/2013 - 10/2016] (2 Of 2)
| *A | Type A | *B | Type B |
| *1 | BACK-UP LIGHT BULB | *2 | REAR LIGHT ASSEMBLY |
| *3 | REAR LIGHT GASKET | *4 | REAR LIGHT GASKET |
| *5 | REAR LIGHT SOCKET AND WIRE | *6 | REAR LIGHT LENS AND BODY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
