Reassembly [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIGHT GASKET
    1. Type A:

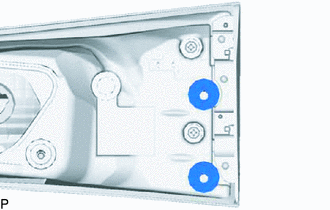

      GTY461342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 2 new rear light gaskets.
    2. Type B:

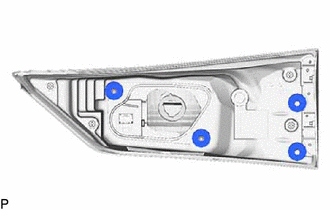

      GTY515113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 4 new rear light gaskets.
  2. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear light socket and wire.

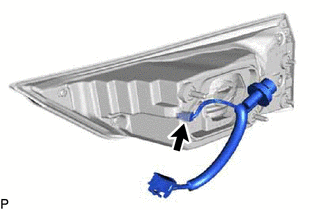

      GTY469660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR LIGHT GASKET
    1. Type A:

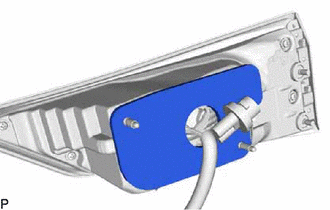

      GTY461336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.
    2. Type B:

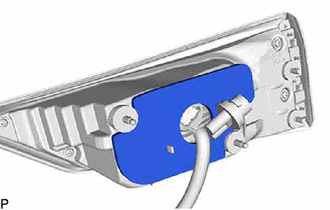

      GTY521374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install a new rear light gasket.
  4. INSTALL BACK-UP LIGHT BULB
    1. Type A:
      1. Install the back-up light bulb to the rear light socket and wire.
      2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

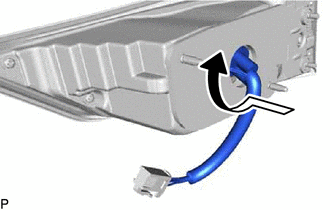

        GTY461338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Install the back-up light bulb to the rear light socket and wire.
      2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

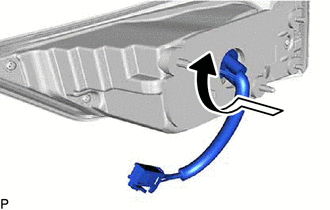

        GTY515114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
