System Diagram [10/2023 - ]

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

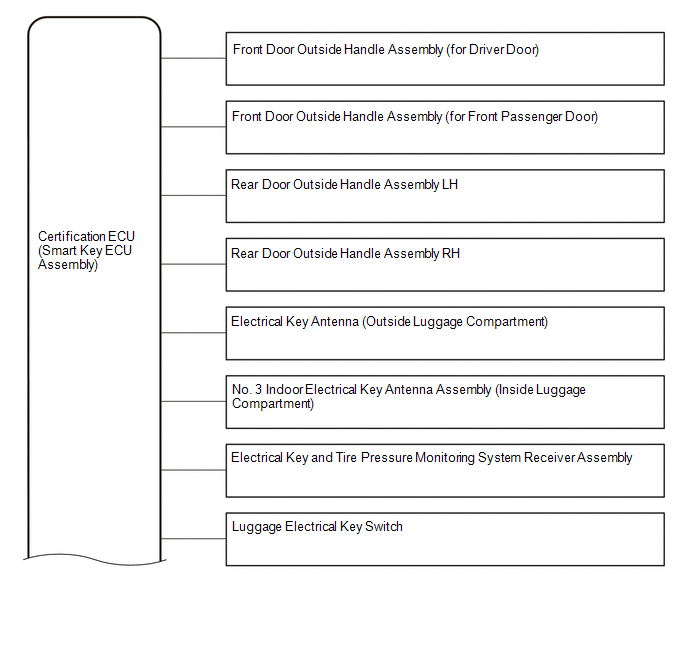

    GTY1237548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

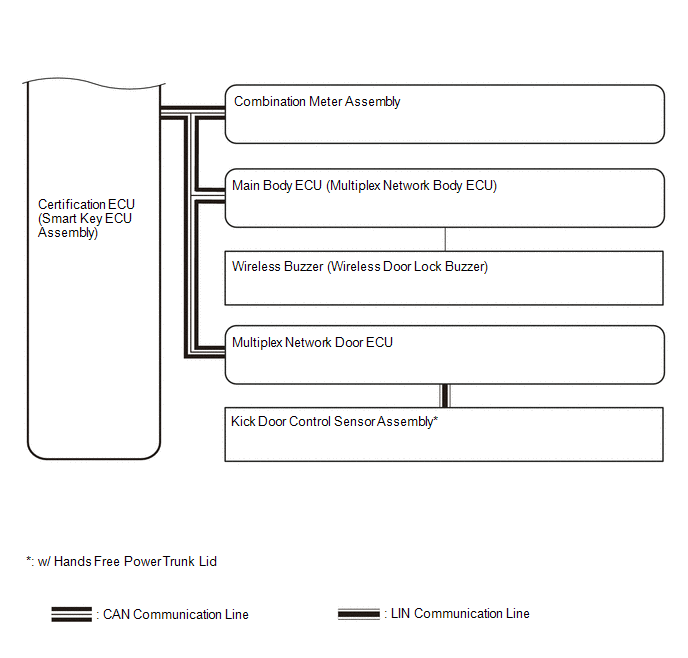

    GTY1234481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [10/2023 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [10/2023 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [10/2023 - ]
