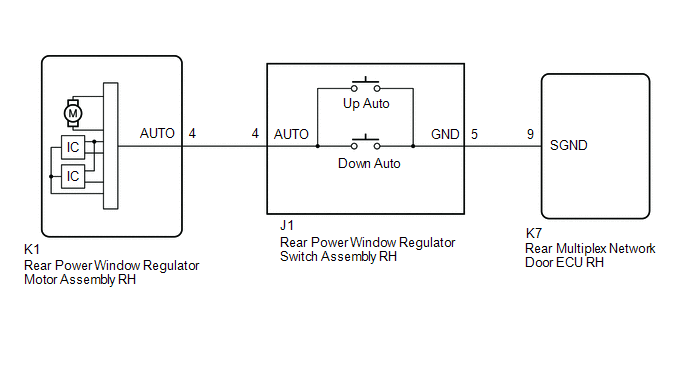

Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [10/2017 - 10/2023]: Wiring Diagram

GTY807549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
