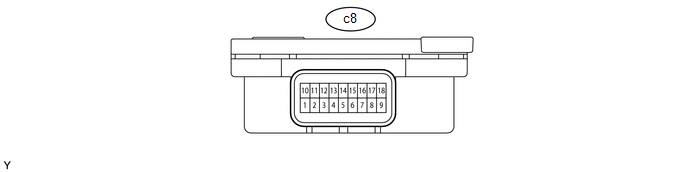

| c8-3 (GSP) - c8-5 (GND) |
G - BR |
Seat position sensor ground line |
Always |
Below 1 V |
| c8-4 (SP) - c8-3 (GSP) |
R - G |
Seat position sensor signal line |
Engine switch on (IG) |
Low: 4.7 to 7.3 mA
Hi: 11.4 to 17.9 mA |
| c8-5 (GND) - Body ground |
BR - Body ground |
Occupant classification ECU ground line |
Always |
Below 1 Ω |
| c8-6 (PS) - c8-15 (GPS) |
W - GR |
Pressure sensor signal line |
Engine switch on (IG) |
Below 1 V |
| c8-7 (VPS) - c8-5 (GND) |
B - BR |
Pressure sensor +B line |
Engine switch on (IG) |
4.75 to 5.25 V |
| c8-8 (GBT) - c8-5 (GND) |
LG - BR |
Belt tension sensor ground line |
Always |
Below 1 V |
| c8-9 (IG) - c8-5 (GND) |
B - BR |
Occupant classification ECU +B line |
Engine switch on (IG) |
11 to 14 V |
| c8-10 (DIA) - c8-5 (GND) |
R - BR |
Diagnosis (DLC3) |
Engine switch on (IG) |
Pulse generation |
| c8-11 (FSR+) - c8-12 (FSR-) |
W - B |
Center airbag sensor communication line |
Engine switch on (IG) |
Pulse generation |
| c8-12 (FSR-) - c8-5 (GND) |
B - BR |
Center airbag sensor communication line (-) |
Always |
Below 1 Ω |
| c8-13 (BSW) - c8-14 (BGND) |
R - W-B |
Passenger side buckle switch line |
Engine switch on (IG) |
Low: 4 to 7 mA
Hi: 12 to 18 mA |
| c8-14 (BGND) - c8-5 (GND) |
W-B - BR |
Passenger side buckle switch ground line |
Always |
Below 1 Ω |
| c8-15 (GPS) - c8-5 (GND) |
GR - BR |
Pressure sensor ground line |
Always |
Below 1 Ω |
| c8-16 (BT) - c8-5 (GND) |
P - BR |
Belt tension sensor signal line |
Engine switch on (IG) |
Below 1 V |
| c8-17 (VBT) - c8-5 (GND) |
GR - BR |
Belt tension sensor +B line |
Engine switch on (IG) |
4.75 to 5.25 V |
