System Diagram [09/2015 - ]

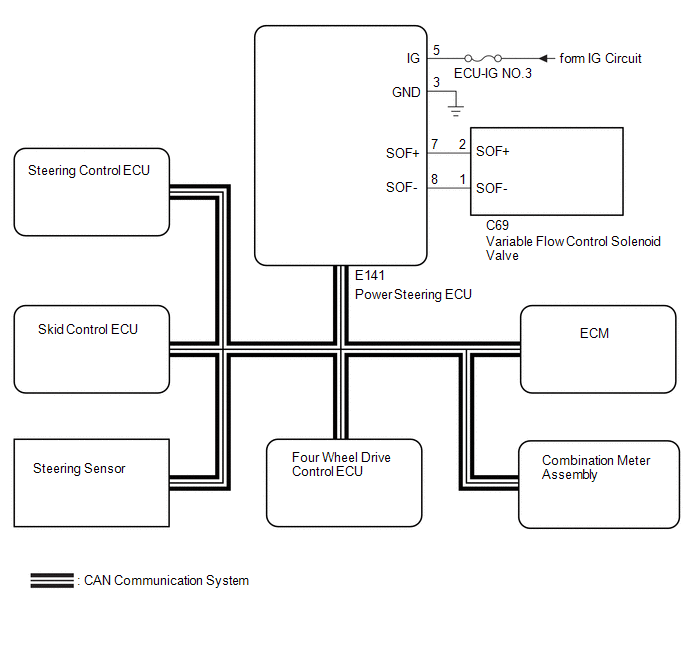

Fig 1: Power Steering System Diagram

GTY954409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
