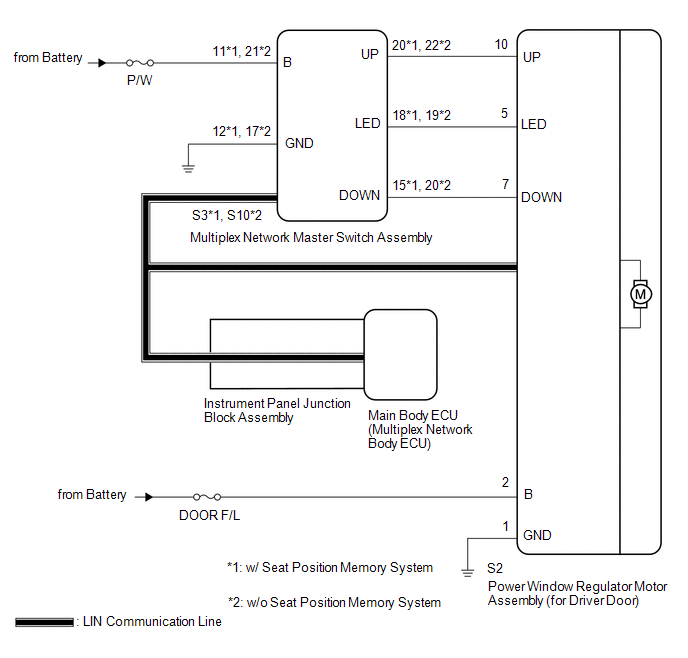

Driver Side Power Window does not Operate with Power Window Master Switch [09/2014 - ]: Wiring Diagram

GTY497492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
