System Diagram [11/2021 - ]
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

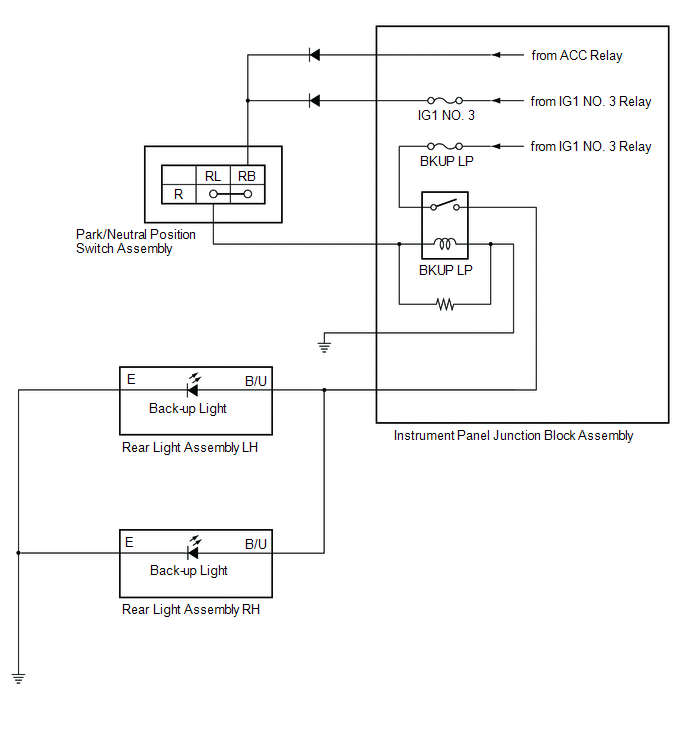

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

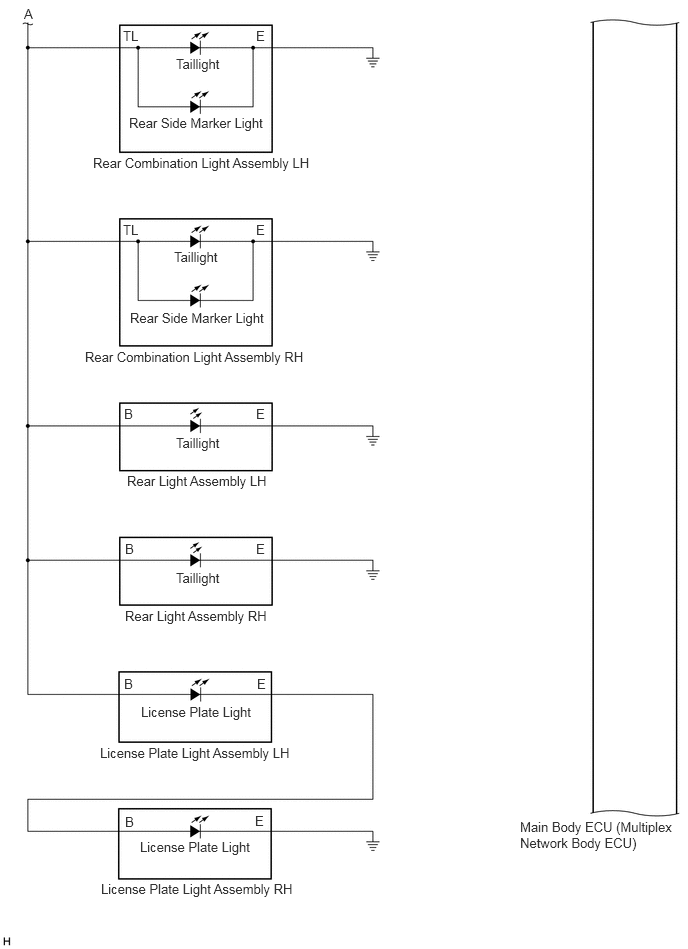

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

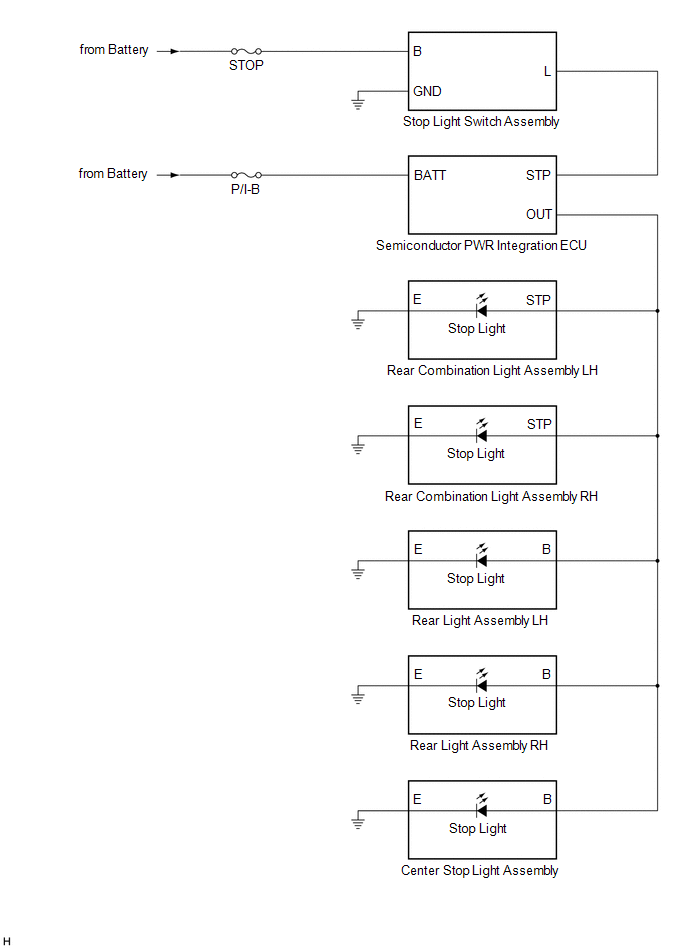

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

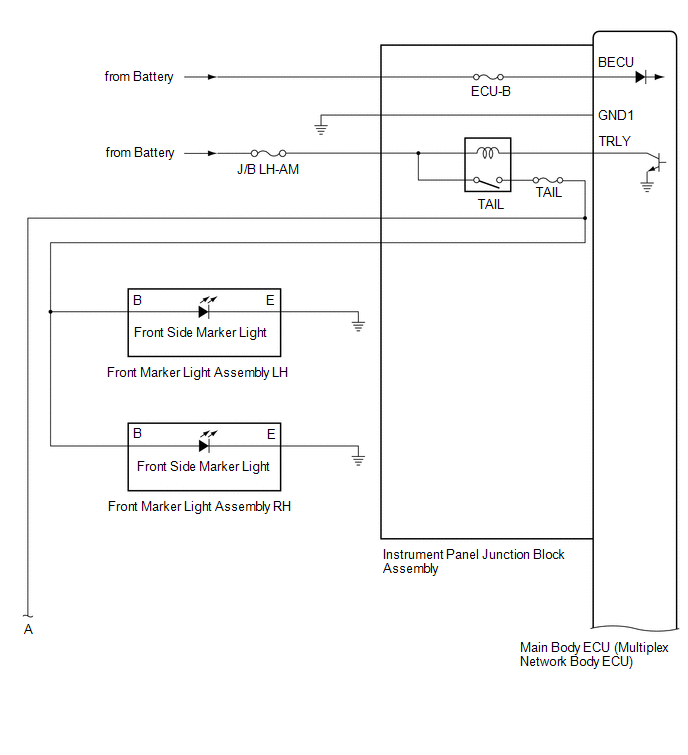

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

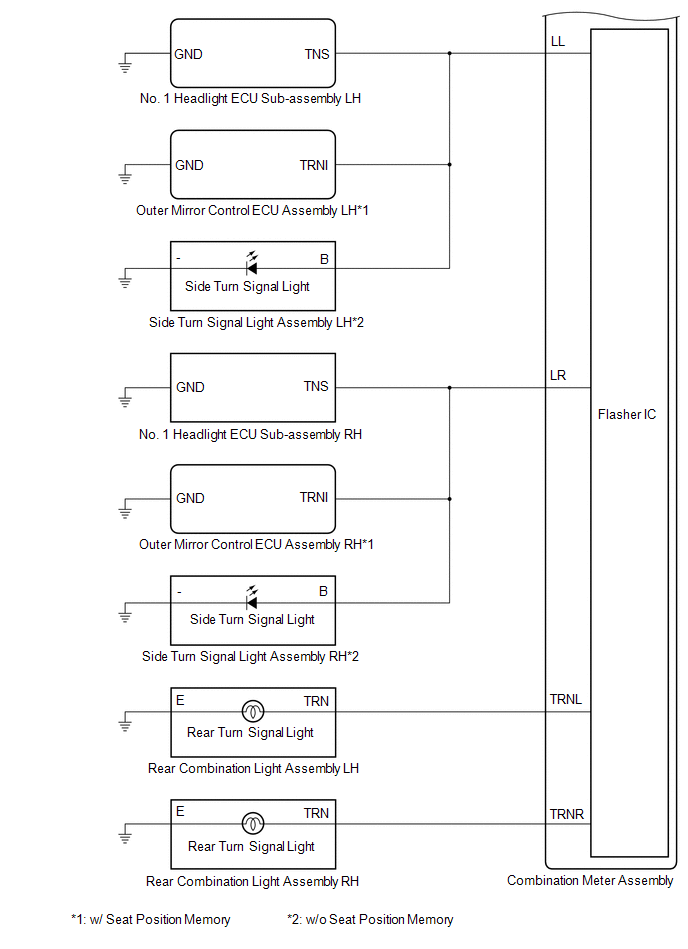

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

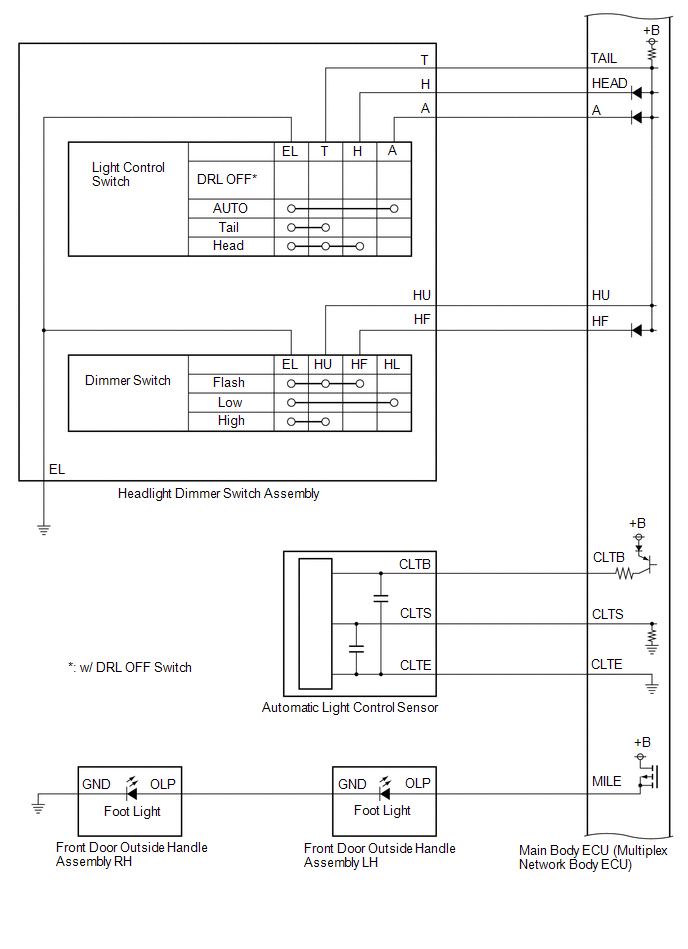

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

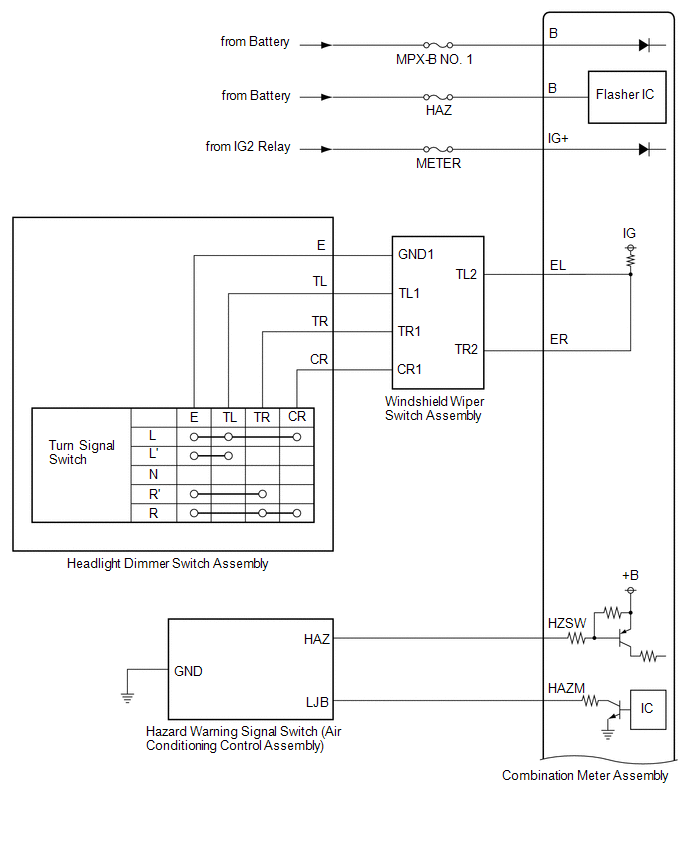

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

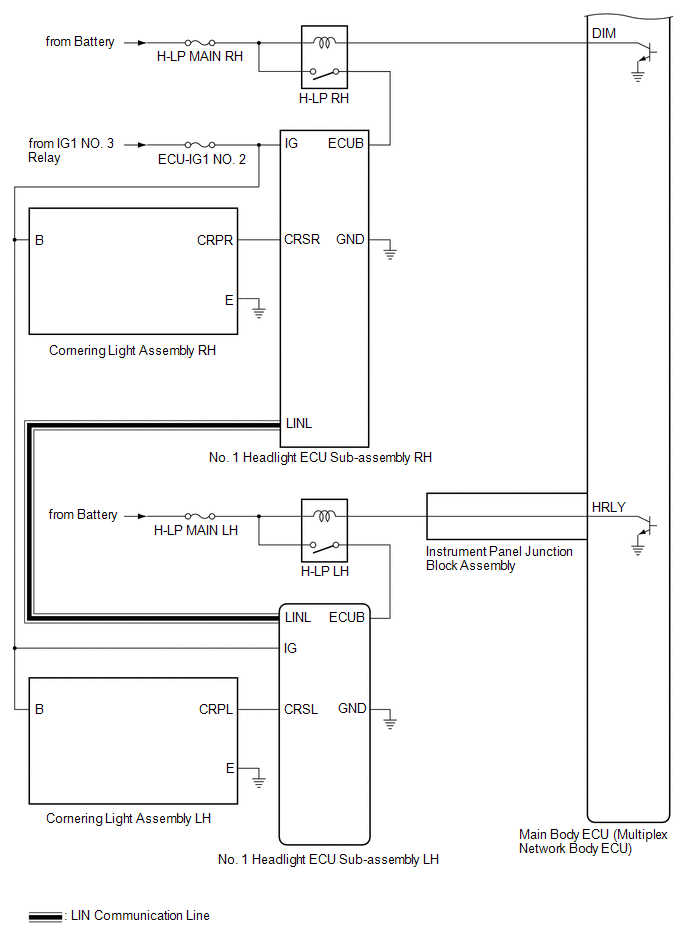

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- HEADLIGHT ASSEMBLY CIRCUIT (for Triple Beam Headlight)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- HEADLIGHT ASSEMBLY CIRCUIT (for Single Beam Headlight)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
