System Diagram [10/2022 - ]

WARNING: This page is about a different car, the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, and 2023 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

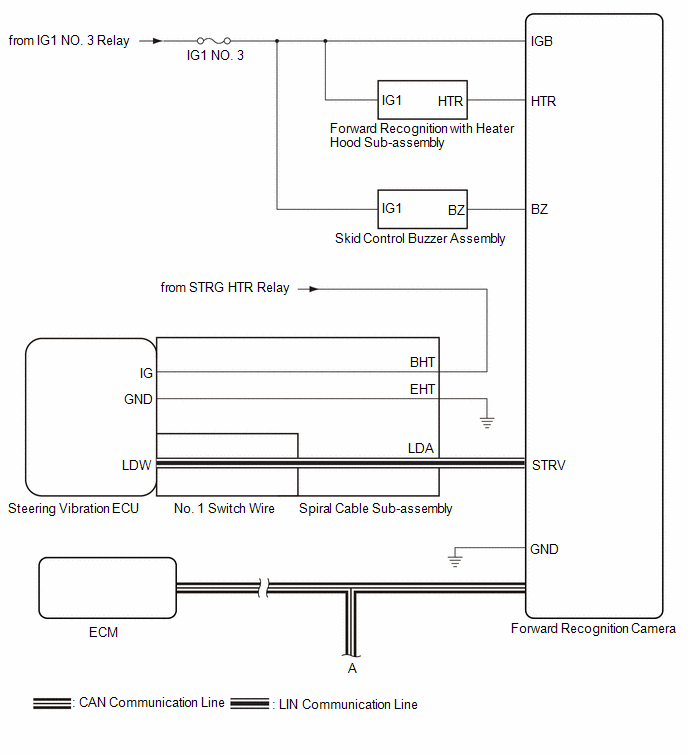

GTY1138197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

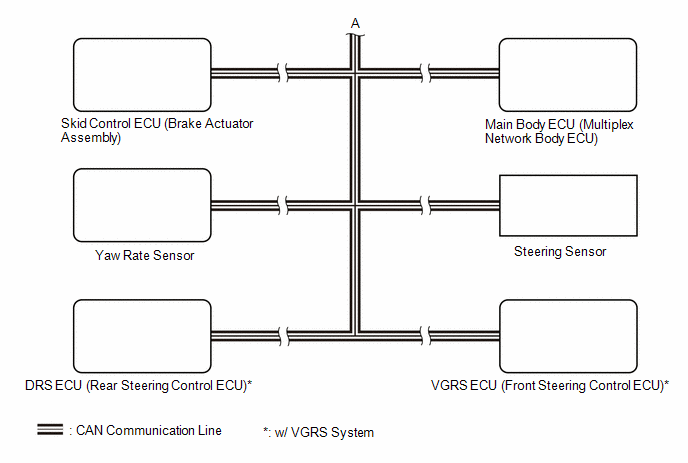

GTY1138324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
