Diagnosis System [08/2016 - ]

Refer to GENERAL INFORMATION [09/2015 - ]

1. Turn the engine switch on (IG).

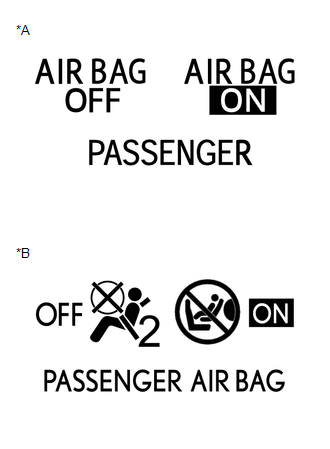

2. The passenger airbag ON/OFF indicator comes on for approximately 4 seconds, then goes off for approximately 2 seconds.
3. Approximately 6 seconds after the engine switch is turned on (IG), the passenger airbag ON/OFF indicator will indicate ON/OFF depending on the following conditions.
   INDICATOR OPERATION



   Front Passenger Seat Condition	Passenger Airbag ON/OFF Indicator		SRS Warning Light
   	ON Indicator	OFF Indicator
   Vacant	OFF	ON	OFF
   Adult *1 is seated	ON	OFF	OFF
   Child *2 is seated	ON or OFF *2	OFF or ON *2	OFF
   Child restraint system is installed	OFF	ON	OFF
   Occupant classification system failure	OFF	ON	ON

   1. *1: The system judges a person of average adult weight or more as an adult. If a smaller adult sits in the front passenger seat, the system may not recognize them as an adult depending on their physique and posture.
   2. *2: The system may not recognize a child or a child in a child restrain system as a child depending on factors such as the positioning of the child restraint system or the child's physique or posture.

   HINT:

   • The passenger airbag ON/OFF indicator illuminates based on the following timing chart in order to check the indicator light circuit.
   • When the occupant classification system has a malfunction, both the SRS warning light and passenger airbag ON/OFF indicator ("OFF") come on. In this case, check for airbag system DTCs first.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to the indicator operation table in Function of Passenger Airbag ON/OFF Indicator for the passenger airbag ON/OFF indicator operation when the engine switch is turned on (IG) and approximately 6 seconds elapse.
