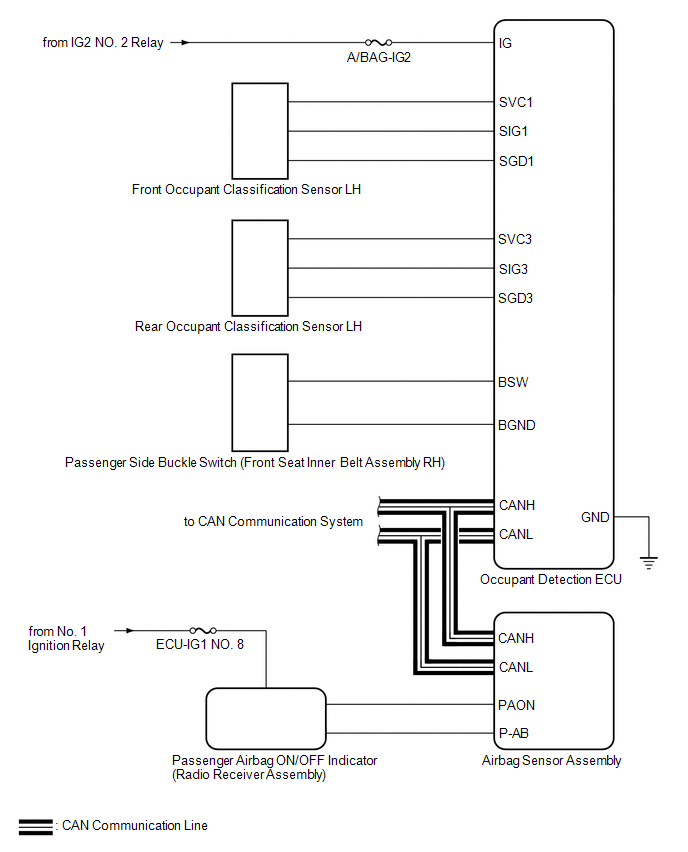

System Diagram [09/2015 - ]

GTY666335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Airbag Sensor Assembly Occupant Detection ECU
  • Crash detection signal
  • Acceleration signal *1
 CAN
Yaw Rate Sensor Assembly *2 Occupant Detection ECU
  1. Acceleration signal
Skid Control ECU (Brake Actuator Assembly) Occupant Detection ECU
  1. Vehicle speed signal
Occupant Detection ECU Airbag Sensor Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for passenger signal
  • Buckle switch state of passenger signal
  1. *1: w/o VDIM
  2. *2: w/ VDIM
