Components [09/2015 - 08/2019]

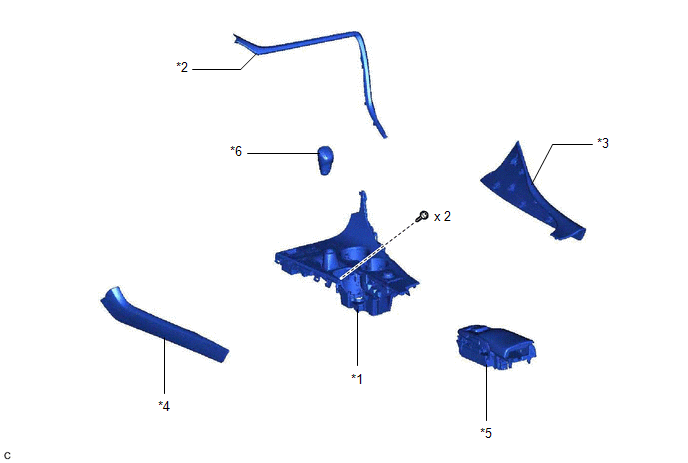

Fig 1: 4WD Control Switch Replacement Components [09/2015 - 08/2019] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE PANEL SUB-ASSEMBLY	*2	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
*3	LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL	*4	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
*5	REMOTE TOUCH ASSEMBLY	*6	SHIFT LEVER KNOB SUB-ASSEMBLY

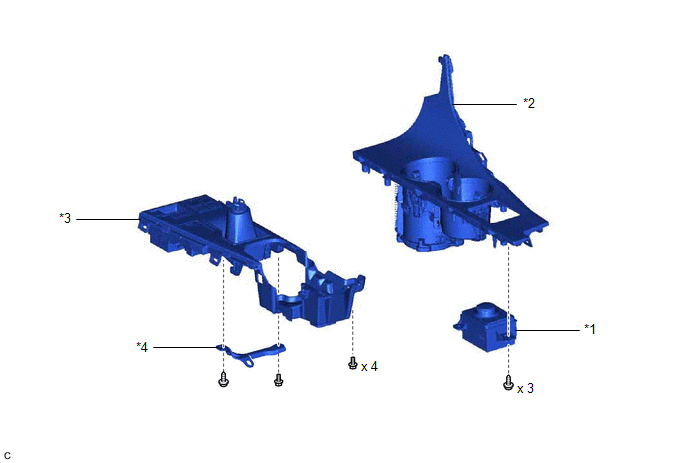

Fig 2: 4WD Control Switch Replacement Components [09/2015 - 08/2019] (2 Of 2)

*1	AWD LOCK SWITCH (COMBINATION SWITCH ASSEMBLY)	*2	CONSOLE BOX ORNAMENT
*3	SHIFTING HOLE FRAME SUB-ASSEMBLY	*4	CONSOLE BOX BRACKET
