System Diagram [09/2015 - 12/2017]

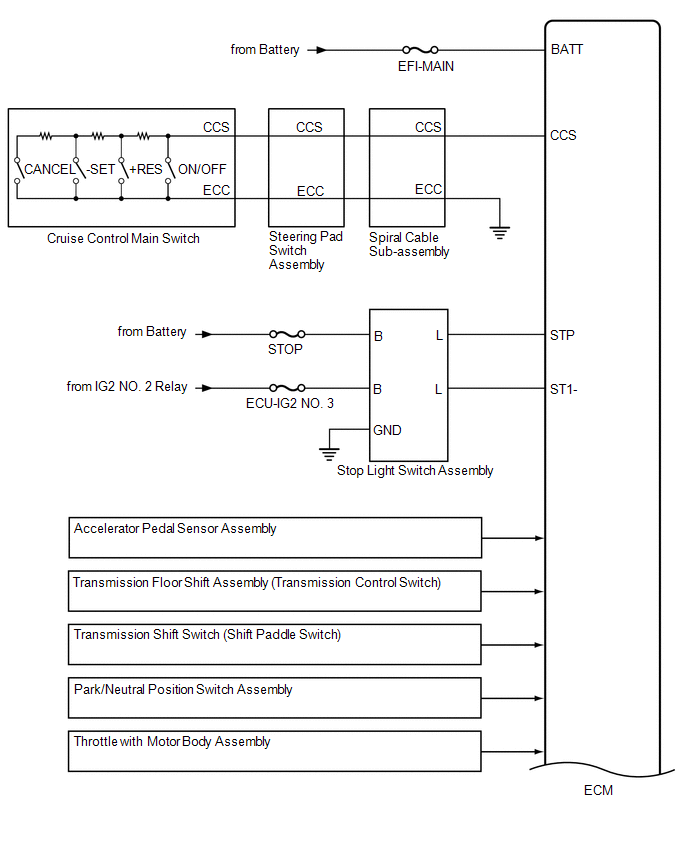

GTY670641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

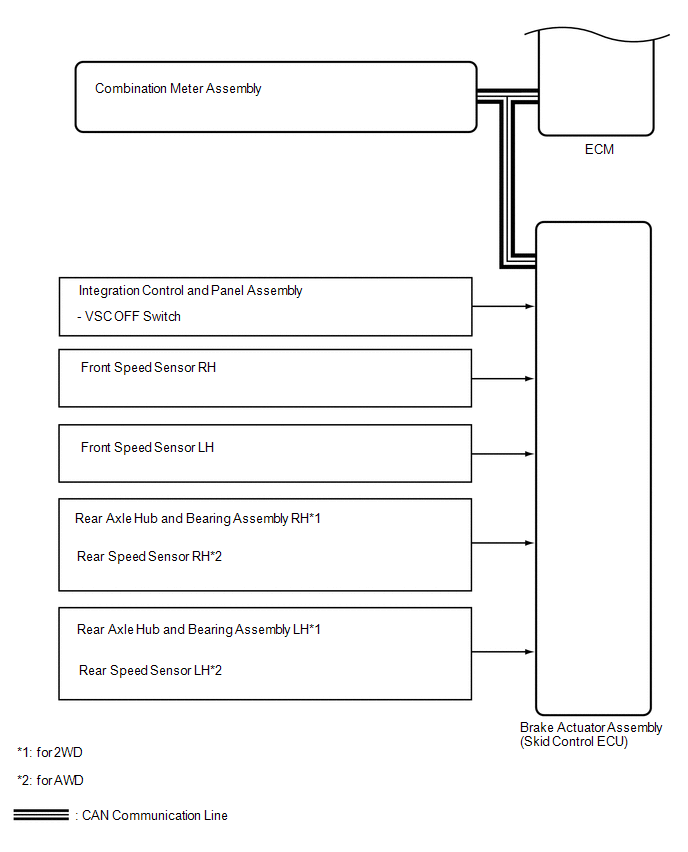

GTY623837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
ECM Combination Meter Assembly
  • Cruise Control Indicator
  • Cruise Control SET Indicator
  • Multi-information Display
  • Cruise control indicator and cruise control SET indicator operation signal
  • Control vehicle speed signal
 CAN
Skid Control ECU (Brake Actuator Assembly) ECM
  • Wheel speed signal
  • Speed sensor power drop signal
  • Speed sensor condition signal
  • Cruise control cancel request signal
  • Under VSC control signal
  • Under TRC control signal
 CAN
