Removal [12/2017 - 08/2019]: Procedure
- PRECAUTION
Refer to PRECAUTION [09/2015 - ]
- CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
- Disable the auto tilt away function by changing the customize settings.
Refer to CUSTOMIZE PARAMETERS [09/2015 - ]
NOTE:Record the current customize setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the auto tilt away function to be disabled when the engine switch is turned off.
- Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
- Disable the auto tilt away function by changing the customize settings.
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE HORN BUTTON ASSEMBLY
Refer to REMOVAL [08/2016 - 08/2019]
- REMOVE STEERING WHEEL ASSEMBLY
See step 3

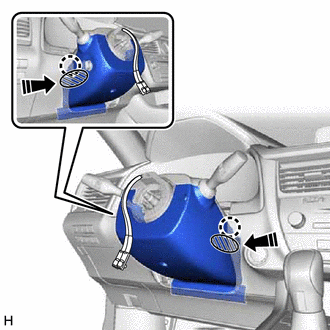

- REMOVE LOWER STEERING COLUMN COVER

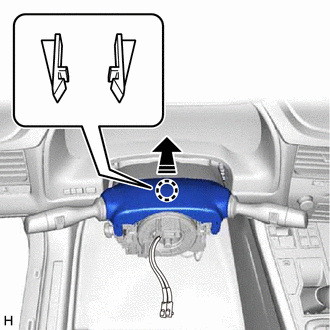

- REMOVE UPPER STEERING COLUMN COVER

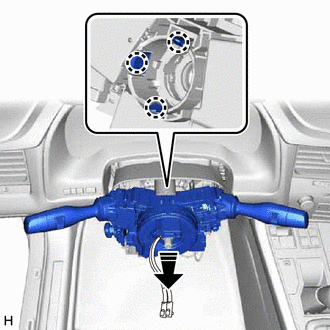

- REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the engine switch on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [12/2017 - 08/2019]
- REMOVE REMOTE TOUCH ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE CONSOLE BOX ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 38
- REMOVE NO. 4 AIR DUCT SUB-ASSEMBLY
- REMOVE STOP LIGHT SWITCH ASSEMBLY
Refer to PROCEDURE - Step 2
- SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
- Loosen the bolt.
- Remove the bolt and slide the steering intermediate shaft assembly.NOTE:
Do not remove the steering intermediate shaft assembly from the steering column assembly.

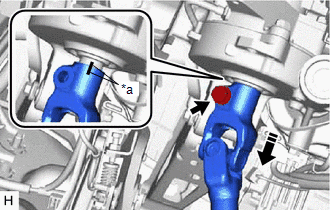

*a Matchmark - Put matchmarks on the steering intermediate shaft assembly and the steering column assembly.
- Remove the steering intermediate shaft assembly from the steering column assembly.
- Loosen the bolt.

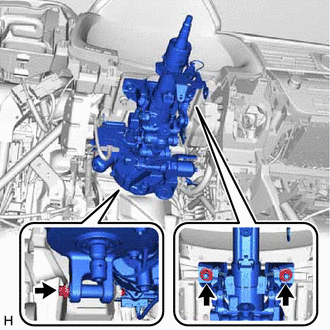

- REMOVE STEERING COLUMN ASSEMBLY
