DTC C1A75-87: Steering Vibrator System Missing Message [08/2021 - ]: Procedure

Refer to INSPECTION [06/2018 - ]

Result

Result:

NG

REPLACE SPIRAL CABLE SUB-ASSEMBLY. Refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

Result:

OK

See step  2

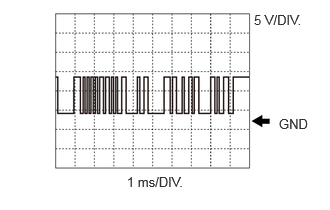

1. Using an oscilloscope, measure the waveform at G81 spiral cable sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Measurement Condition

   Tester Connection	Condition	Tester Range
   G81-1 (LDA) - Body ground	Ignition switch ON	5 V/DIV., 1 ms/DIV.

   NOTE:

   The oscilloscope waveform is for reference only and does not include noise, fluctuations, etc.

   OK

   A waveform similar to that in the illustration can be observed.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  5

Result:

OK

See step  3

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   G81-4 (BHT) - Body ground	Ignition switch ON	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G81-2 (EHT) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE STEERING VIBRATION ECU. Refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Disconnect the P5 forward recognition camera connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G81-1 (LDA) - P5-2 (STRV)	Always	Below 1 Ω
   G81-1 (LDA) or P5-2 (STRV) - Body ground	Ignition switch off	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [08/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
