Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 19

  3. REMOVE NO. 1 PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY

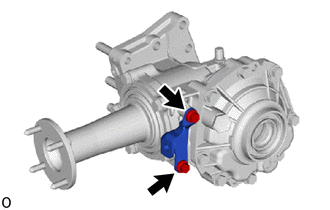

    1. Remove the 2 bolts and No. 1 propeller shaft heat insulator bracket sub-assembly from the transfer assembly.
      GTY934333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  5. REMOVE TRANSFER ASSEMBLY

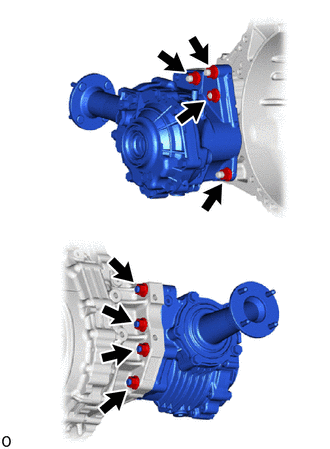

    1. Remove the 8 nuts and transfer assembly from the automatic transaxle assembly.
      GTY869846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
