System Diagram [06/2018 - 08/2020]

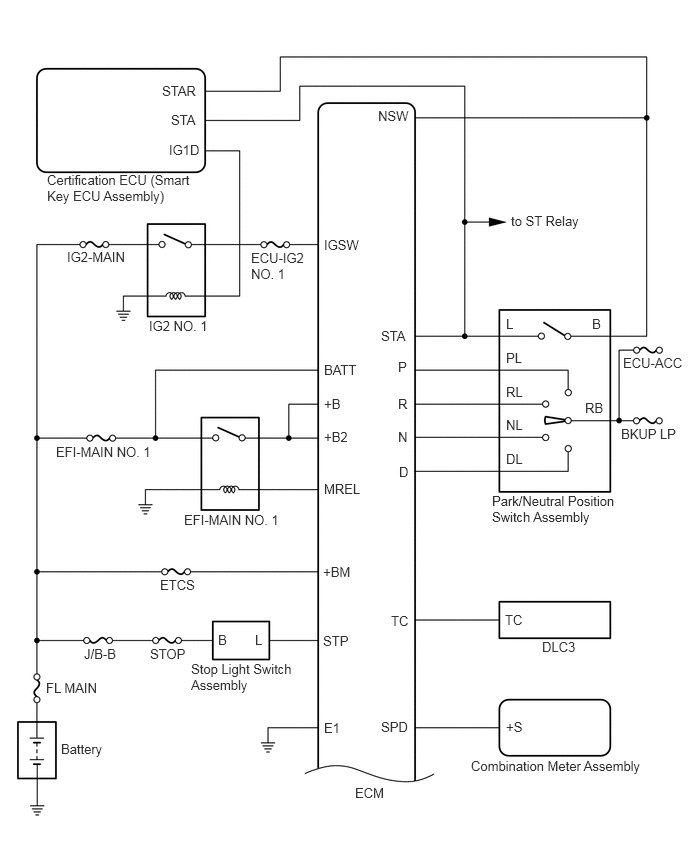

GTY755441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

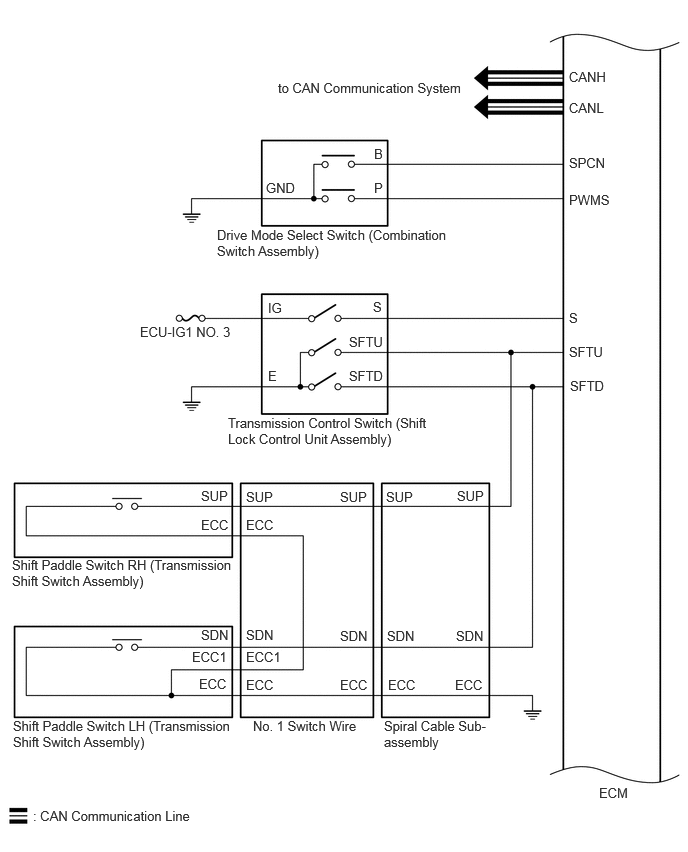

GTY775517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

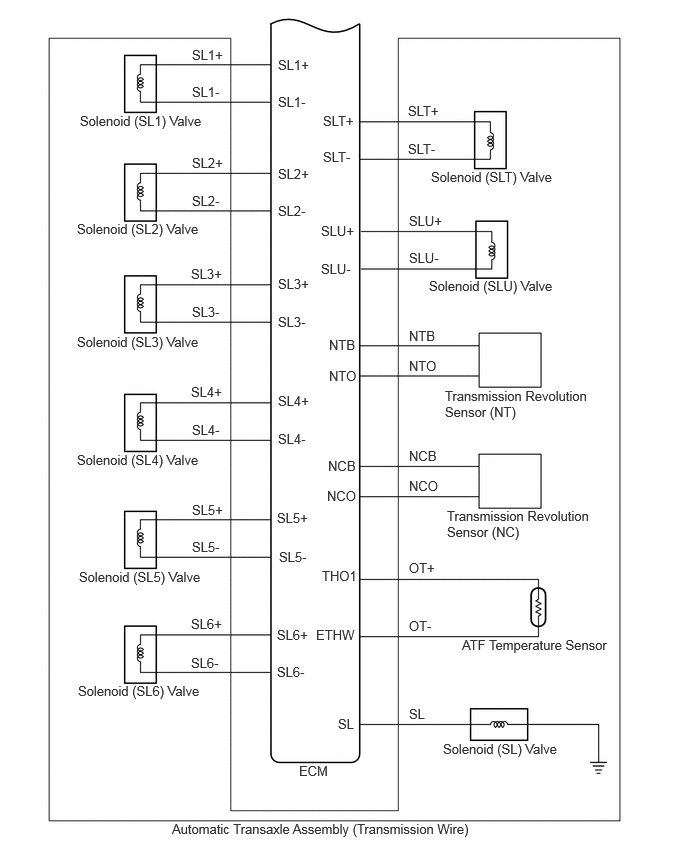

GTY698746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
