System Diagram [09/2014 - 10/2015]

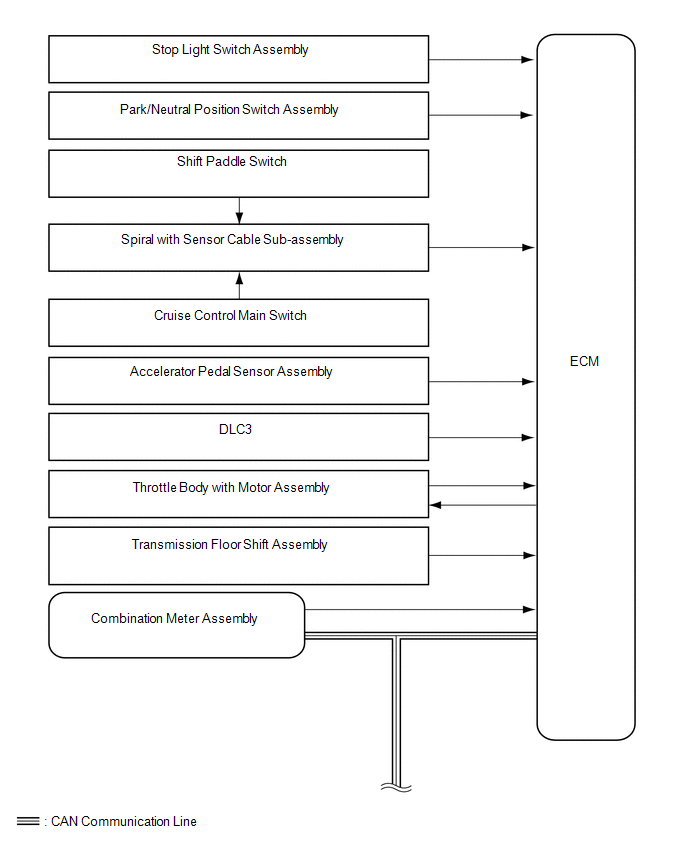

GTY399011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

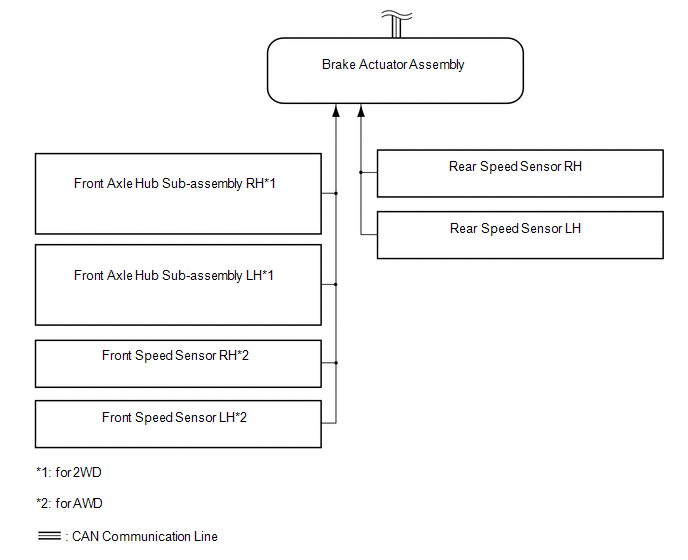

GTY403641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Combination meter ECM Cruise control indicator light signal CAN
Brake actuator ECM Vehicle speed signal CAN
