System Diagram [09/2017 - ]

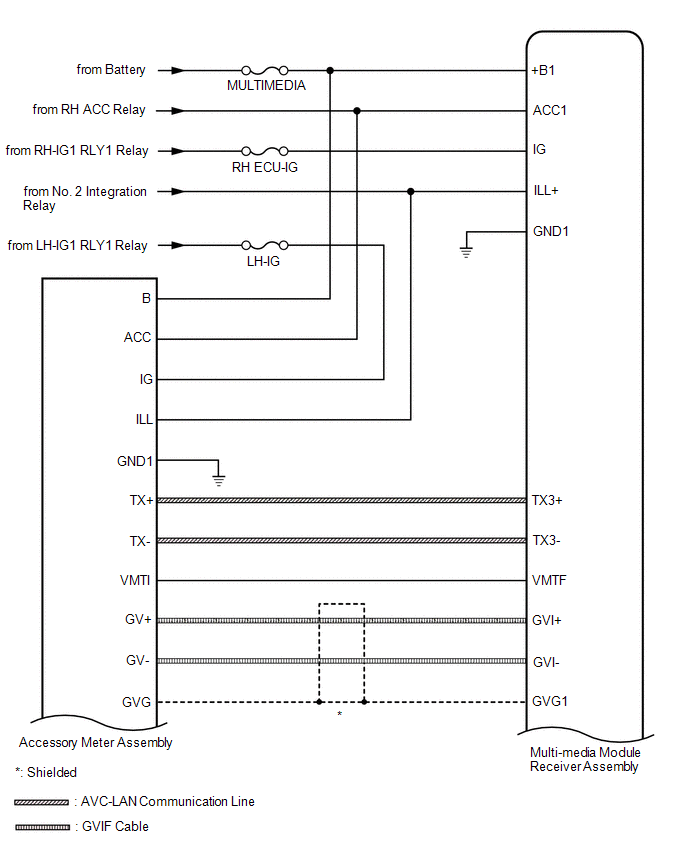

GTY823073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

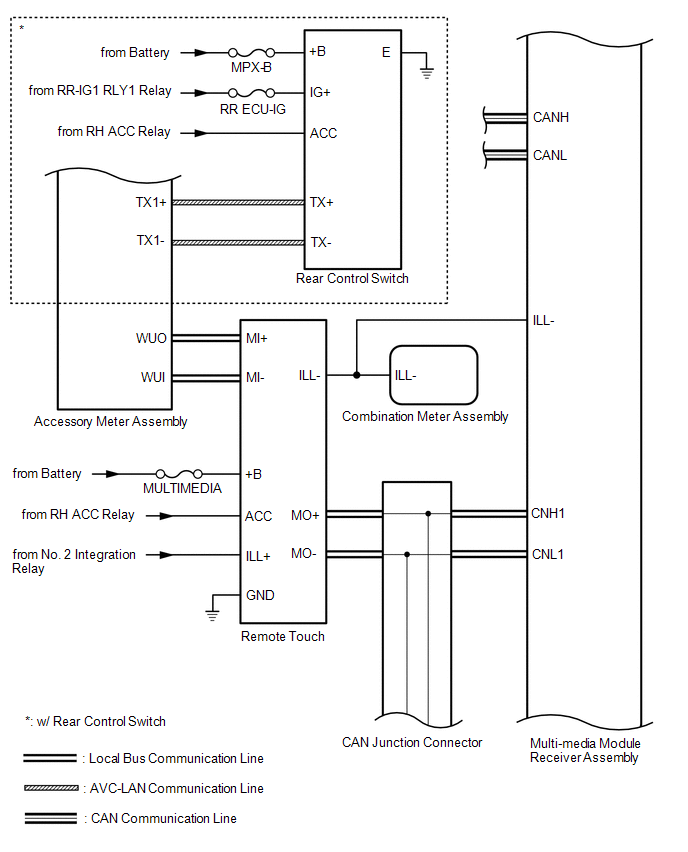

GTY670177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

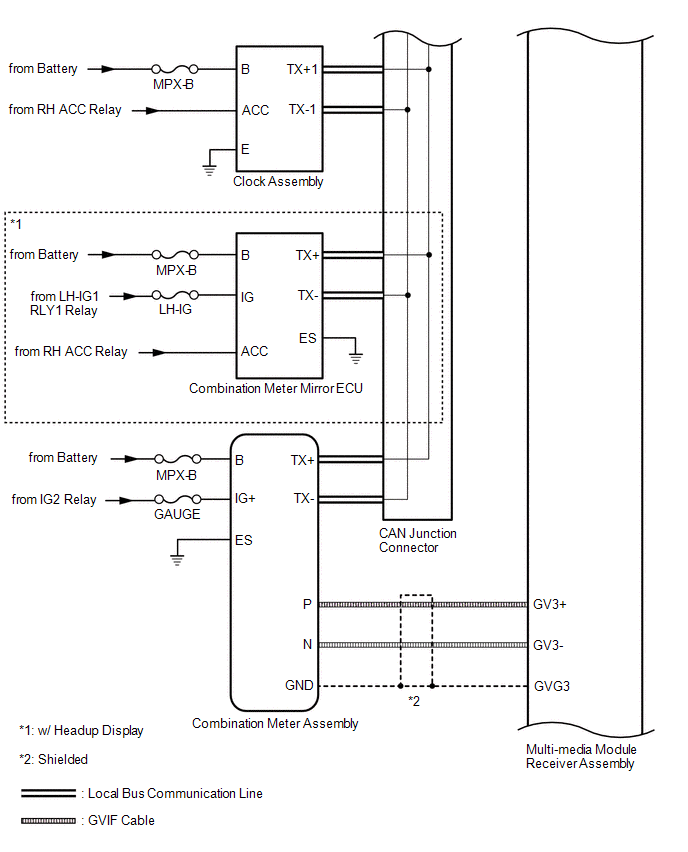

GTY615780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

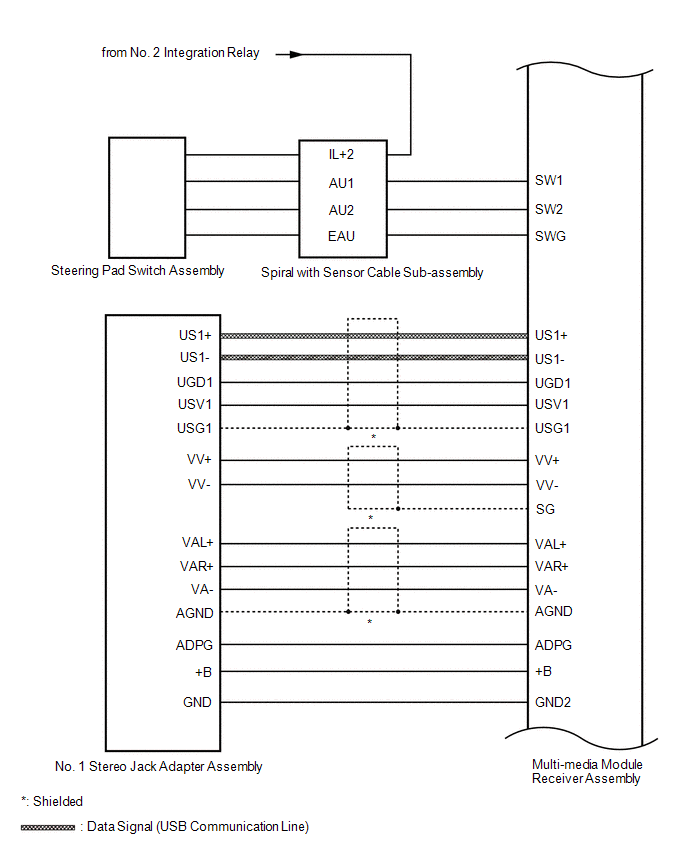

GTY621346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

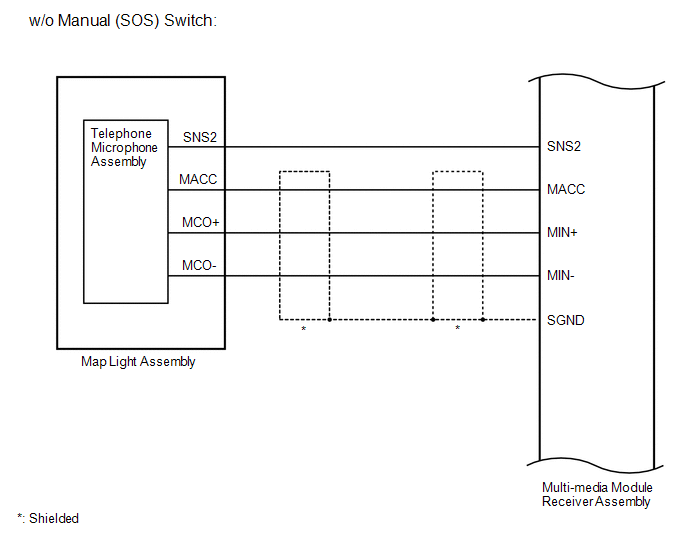

GTY651716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

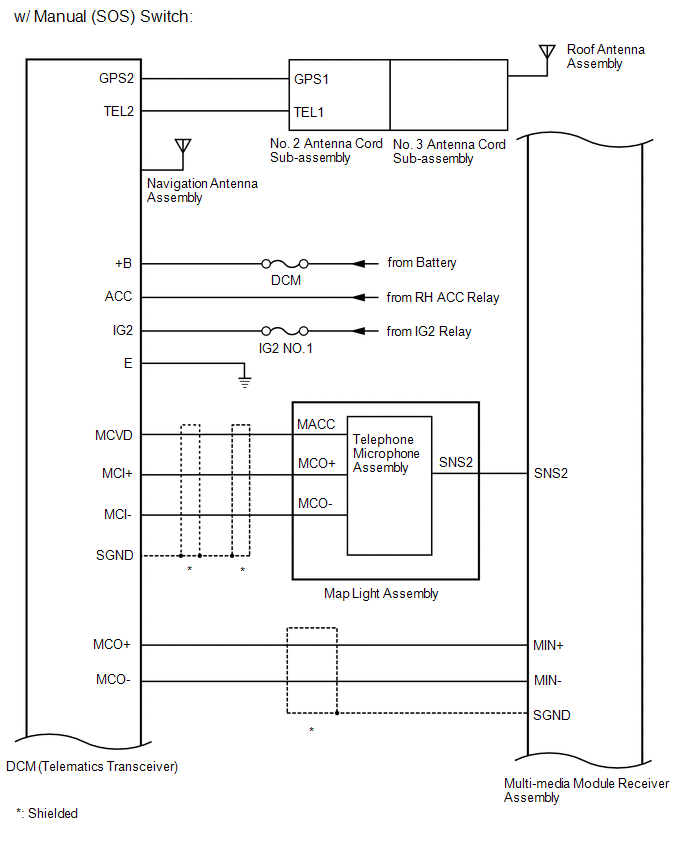

GTY780169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

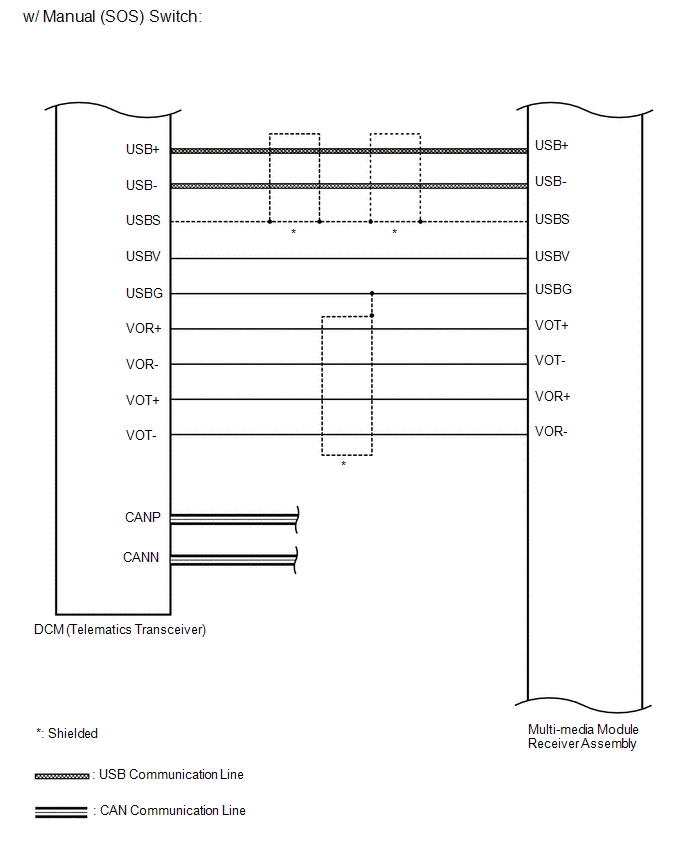

GTY668634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

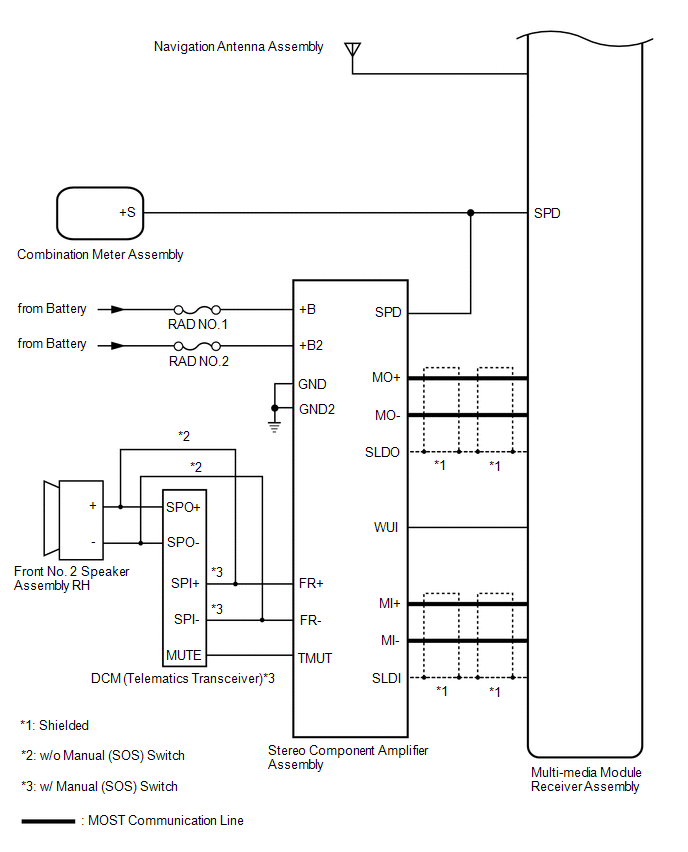

GTY781123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
