Initialization [10/2015 - 09/2018]
- Inspection After Repair
Perform Learning Value Reset and Idle Learning after replacing or servicing parts related to engine operation. Details on procedures required are indicated by an asterisk and a number, and are explained in detail following the table.
Part Replaced Engine Operation Learning Value Reset*1 Idle Learning*2 - Throttle body with motor assembly*3
- Cleaning the deposits from the throttle body with motor assembly*3
- ◦ ◦ Engine assembly - ◦ ◦ - Cylinder head sub-assembly
- Camshaft (for intake or exhaust camshaft)
- Camshaft timing gear assembly
- Camshaft timing exhaust gear assembly
- Piston or piston ring
- Mass air flow meter sub-assembly
- Fuel injector assembly (for port injection)
- Fuel injector assembly (for direct injection)
- Fuel pump (for low pressure side)
- Fuel pump (for high pressure side)
- Fuel pressure sensor (for low pressure side)
- Fuel pressure sensor (for high pressure side)
- Air fuel ratio sensor
- Heated oxygen sensor
- Engine coolant temperature sensor
- Spark plug
- Ignition coil assembly
- Air leaks from intake system
- Gas leaks from exhaust system
Confirm the following and perform Learning Value Reset and Idle Learning when one or more of the following conditions are met: - A DTC was output before component replacement.
- An air fuel ratio learned value (A/F Learn Value Idle Bank 1, A/F Learn Value Low Bank 1, A/F Learn Value Mid No. 1 Bank 1, A/F Learn Value Mid No. 2 Bank 1, A/F Learn Value High Bank 1, A/F Learn Value Idle Bank 2, A/F Learn Value Low Bank 2, A/F Learn Value Mid No. 1 Bank 2, A/F Learn Value Mid No. 2 Bank 2, A/F Learn Value High Bank 2, A/F Learn Value Low (Dual) Bank 1, A/F Learn Value Mid (Dual) No. 1 Bank 1, A/F Learn Value Mid (Dual) No. 2 Bank 1, A/F Learn Value High (Dual) Bank 1, A/F Learn Value Low (Dual) Bank 2, A/F Learn Value Mid (Dual) No. 1 Bank 2, A/F Learn Value Mid (Dual) No. 2 Bank 2 or A/F Learn Value High (Dual) Bank 2) displayed in the Data List was higher than +/- 15% before component replacement.
- Starting failure or rough idle occurs, or the engine stalls after component replacement.
◦ ◦ None of the conditions in the list above are met. - - Knock control sensor*4 - - - - ◦: Necessary.
- -: Unnecessary.
NOTE:Engine learned values cannot be reset by disconnecting the battery negative (-) terminal or removing the EFI MAIN and ETCS fuses.
- *1: Learning Value Reset
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Utility / Learning Value Reset.
- Confirm the following conditions as instructed on the screen.
- - Engine switch on (IG)
- - Engine stopped
- - Battery voltage is higher than 9 V
- After confirming, select "Next" and initialize the learned value.
HINT:
If a message indicating learned value initialization failure is displayed on the screen, confirm the execution conditions, and perform learned value initialization again.
- After the completion of learned value initialization, confirm the air fuel ratio learned values (A/F Learn Value Idle Bank 1, A/F Learn Value Low Bank 1, A/F Learn Value Mid No. 1 Bank 1, A/F Learn Value Mid No. 2 Bank 1, A/F Learn Value High Bank 1, A/F Learn Value Idle Bank 2, A/F Learn Value Low Bank 2, A/F Learn Value Mid No. 1 Bank 2, A/F Learn Value Mid No. 2 Bank 2, A/F Learn Value High Bank 2, A/F Learn Value Low (Dual) Bank 1, A/F Learn Value Mid (Dual) No. 1 Bank 1, A/F Learn Value Mid (Dual) No. 2 Bank 1, A/F Learn Value High (Dual) Bank 1, A/F Learn Value Low (Dual) Bank 2, A/F Learn Value Mid (Dual) No. 1 Bank 2, A/F Learn Value Mid (Dual) No. 2 Bank 2 and A/F Learn Value High (Dual) Bank 2) in the Data List.
Result
If 0 is displayed for all the air fuel ratio learned values, initialization has completed correctly.
If a value other than 0 is displayed for one of the air fuel ratio learned values, perform initialization again. After initialization, confirm the air fuel ratio learned values. If a value other than 0 is displayed, replace the ECM.
- *2: Idle Learning
- Turn the engine switch off and wait for at least 30 seconds.
- Start the engine and warm it up until the engine coolant temperature is 70°C (158°F) or higher.
HINT:
Learning starts when the engine coolant temperature is 70°C (158°F) or higher.
- After the engine is warmed up, allow it to idle for 5 minutes with the air conditioning and all accessories off.
- Confirm that the idle speed is within the standard range.
Standard
Engine Idle Speed 600 to 700 rpm HINT:
- Be sure to perform this step with the A/C switch and all accessories off.
- Make sure that the shift lever is in N.
- *3: Perform Learning Value Reset and Idle Learning after replacing the throttle body with motor assembly or cleaning deposits from the throttle body with motor assembly.
After that, check the idle speed. If the idle speed is out of the specified range, perform the following procedure.

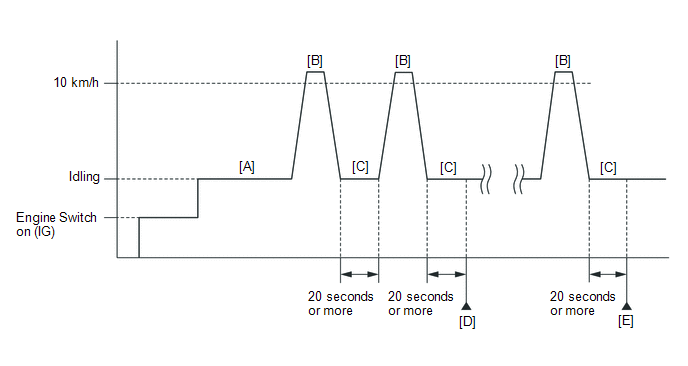

WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
History information for driving and stopping is necessary to update idle learning.
- Warm up the engine (engine coolant temperature is 70°C (158°F) or higher, air conditioning and all accessories are off) [A].
- Drive the vehicle at 10 km/h (6 mph) or more [B].
- Idle the engine for 20 seconds or more [C].
- Repeat procedure [B] and [C], and check that the idle speed is within the specified range [D].
Standard
Engine Idle Speed 600 to 700 rpm HINT:
- Be sure to perform this step with all accessories off.
- Make sure that the shift lever is in N.
- If the idle speed is still out of the specified range, repeat procedure [B] and [C] until the idle speed is within the specified range [E].
- *4: Drive the vehicle for a short while after replacing the knock control sensor, and check if knocking occurs. If knocking occurs, drive the vehicle until knocking stops.
