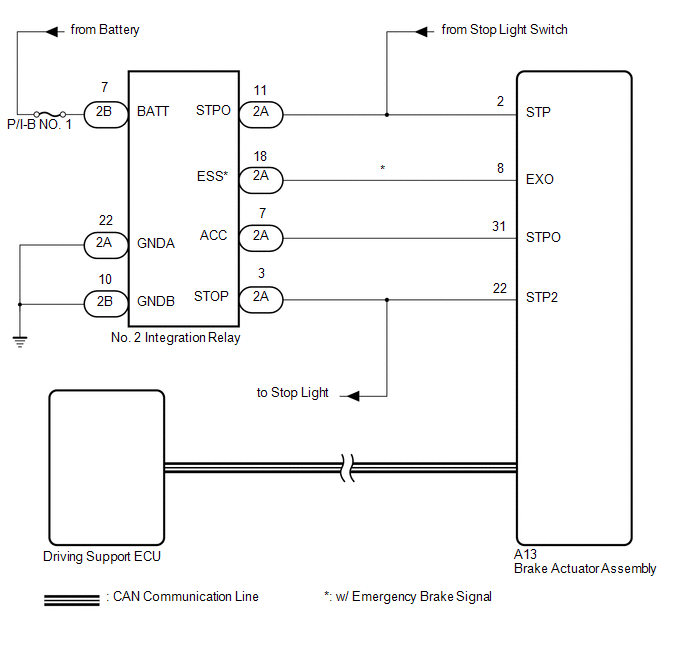

DTC C1A4B: Stop Light Relay Circuit [09/2014 - 10/2015]: Wiring Diagram

GTY463118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
