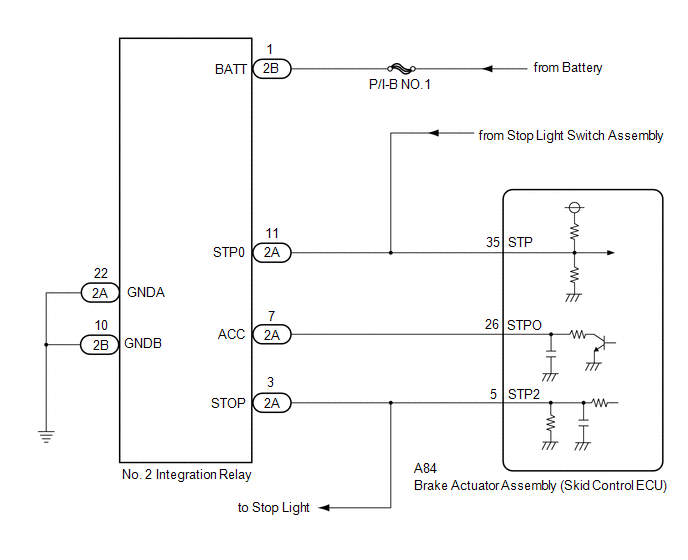

DTC C1A4B: Stop Light Relay Circuit [09/2017 - ]: Wiring Diagram

GTY820123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
