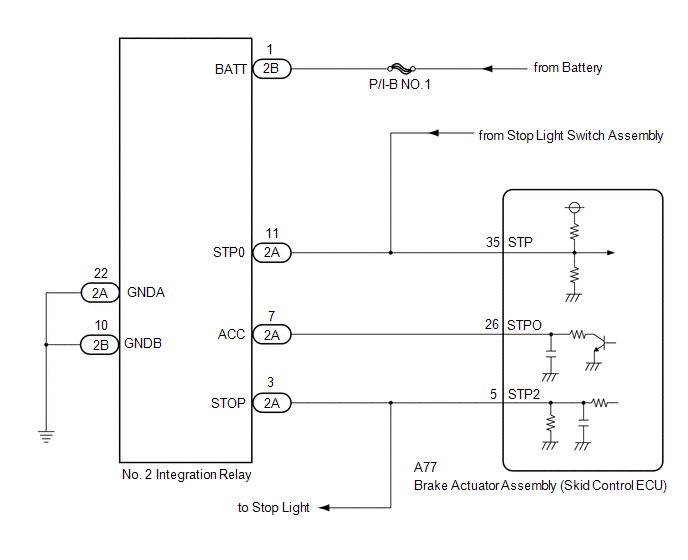

DTC C1A4B: Stop Light Relay Circuit [10/2015 - 09/2017]: Wiring Diagram

GTY664340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
