Inspection [09/2014 - ]: Procedure
- INSPECT STEERING COLUMN ASSEMBLY
- Inspect the tilt motor.
- Disconnect the tilt motor connector.
- Apply 12 V battery voltage to the tilt motor connector. Then check the steering wheel tilt operation.
OK
Measurement Condition Specified Condition - 12 V battery positive (+) lead → Terminal 1 (TIM+)
- 12 V battery negative (-) lead → Terminal 2 (TIM-)
The steering wheel tilts up. - 12 V battery negative (-) lead → Terminal 1 (TIM+)
- 12 V battery positive (+) lead → Terminal 2 (TIM-)

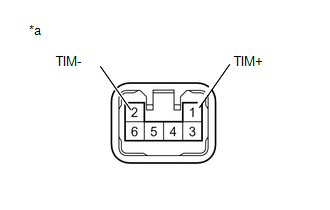

The steering wheel tilts down. TEXT IN ILLUSTRATION*a Component without harness connected
(Tilt Motor)If the result is not as specified, replace the steering column assembly.
- Inspect the telescopic motor.
- Disconnect the telescopic motor connector.
- Apply 12 V battery voltage to the telescopic motor connector. Then check the steering column telescopic operation.
OK
Measurement Condition Specified Condition - 12 V battery positive (+) lead → Terminal 2 (TEM+)
- 12 V battery negative (-) lead → Terminal 1 (TEM-)
The steering column contracts. - 12 V battery positive (+) lead → Terminal 1 (TEM-)
- 12 V battery negative (-) lead → Terminal 2 (TEM+)

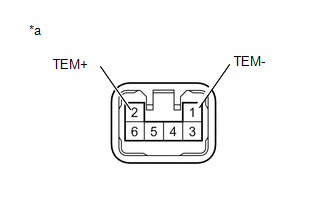

The steering column extends. TEXT IN ILLUSTRATION*a Component without harness connected
(Telescopic Motor)If the result is not as specified, replace the steering column assembly.
