Data List / Active Test [08/2019 - 08/2022]

  1. DATA LIST

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    NOTE:

    In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Power Source Control / Data List.
    5. Read the Data List according to the display on the Techstream.
      POWER SOURCE CONTROL

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Shift P Signal Shift position P OFF or ON OFF: Shift lever not in P
      ON: Shift lever in P      		 Use this item to determine whether the shift lever position switch (P) is malfunctioning.
      Steering Unlock Switch State of steering unlock sensor signal output from steering lock ECU (steering lock actuator assembly) OFF or ON OFF: Steering locked
      ON: Steering unlocked      		 w/ Steering Lock System::
      • When the shift lever is in P and the engine switch is off, if any door is opened or closed, the steering is locked.
      • When the electrical key transmitter sub-assembly is in the cabin and the engine switch is turned on (ACC) or on (IG), the steering unlocks.
      • The engine cannot be started when the steering unlock signal is off.

      w/o Steering Lock System::
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Stop Light Switch1 State of brake pedal OFF or ON OFF: Brake pedal released
      ON: Brake pedal depressed
      • Use this item to determine whether the stop light switch is malfunctioning.
      • The engine cannot be started when this item is OFF.
      • If the stop light switch is malfunctioning, the engine can be started by pressing and holding the engine switch for a certain period of time.
      Start Switch1 Engine switch 1 status OFF or ON OFF: Engine switch not pressed
      ON: Engine switch pressed
      • If the engine switch is pressed for a short time, the display may not change.
      • Use this item to determine whether the engine switch input signal is malfunctioning.
      Start Switch2 Engine switch 2 status OFF or ON OFF: Engine switch not pressed
      ON: Engine switch pressed
      • Backup for engine switch 1. However, when the engine switch is pressed and held, the control functions only when both engine switch 1 and 2 are normal.
      • Behaves the same way as engine switch 1.
      Neutral SW/ Clutch SW Shift position (P and N) ON or OFF ON: Shift lever in P or N
      OFF: Shift lever in any position other than P or N
      • Use this item to determine whether the park/neutral start switch assembly is malfunctioning.
      • When the engine cannot be started due to a park/neutral start switch assembly malfunction, OFF is displayed.
      Latch Circuit Status of IG related backup circuits OFF or ON OFF: Engine switch off
      ON: Engine switch on (IG)
      • Displays in almost the same manner as the IG relay.
      • When the engine switch is on (ACC), OFF is displayed.
      Starter Request Signal Engine start request signal status OFF or ON OFF: After approximately 1 second has elapsed, the engine switch is released
      ON: With the shift lever in P* and brake pedal depressed, the engine switch is pressed and held
      • When the engine cannot be started due to a start request signal malfunction, OFF is displayed.
      • When the engine switch is pressed, the duration of time that ON is displayed will be extremely short. As such, the engine switch needs to be pressed and held for a certain period of time.
      ACC Relay Monitor ACC relay activation OFF or ON OFF: Engine switch off
      ON: Engine switch on (ACC)      		 When the engine switch is on (IG), ON is displayed.
      Engine Condition Engine state Stop or Run Stop: Engine stopped
      Run: Engine running      		 -
      Vehicle Speed Signal Vehicle being driven or stopped Stop or Run Stop: Vehicle stopped
      Run: Vehicle being driven at 5 km/h (3 mph) or more      		 -
      Power Supply Condition Power supply state All OFF, ACC ON, IG ON or ST ON All OFF: Engine switch off (ACC and IG)
      ACC ON: Engine switch on (ACC)
      IG ON: Engine switch on (IG)
      ST ON: Sending engine start request signal      		 -
      Powertrain Type Vehicle identification HV-AT, Cnv-MT, Cnv-AT, Cnv-MMT, S&S-MT, S&S-AT, S&S-MMT or PHV-AT Cnv-AT: Conventional automatic transmission models -
      Starter SW Sig Mismatch Engine switch signal 1 and 2 do not match No or Yes No: Switch normal
      Yes: Switch malfunctioning (Engine switch signal 1 and 2 do not match)      		 Even when Yes is displayed, the engine can be started. However, engine emergency stop while driving by pressing and holding the engine switch cannot be performed, and if the brakes are malfunctioning, engine emergency start by pressing and holding the engine switch cannot be performed.
      Park Signal Mismatch P position signal malfunction No or Yes No: Signal normal
      Yes: Signal malfunction (CAN communication and direct line signal do not match)      		 Even when Yes is displayed, it is still possible to turn the engine switch off (the power source mode will not be stuck in on (ACC) or on (IG)).
      Str Lock/Unlock Wait T-Out Steering lock or unlock malfunction No or Yes No: Lock and unlock normal
      Yes: Lock or unlock malfunction (e.g. steering lock is stuck etc.)      		 w/ Steering Lock System:
      1. When the engine cannot be started due to a steering lock or unlock malfunction, Yes is displayed.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Key Certif Wait T-Out Key verification malfunction No or Yes No: Verification normal
      Yes: Verification error (Detected due to the electrical key transmitter sub-assembly ID code and the ID code stored in the certification ECU (smart key ECU assembly) not matching)      		 When the engine cannot be started due to a key verification error, Yes is displayed.
      IG Circuit IG relay coil circuit malfunction OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item to determine whether the IG relay is malfunctioning.
      • When the engine cannot be started due to an IG relay malfunction, NG is displayed.
      IG Relay Monitor (Outside) IG relay coil voltage monitor status OFF or ON OFF: Engine switch off
      ON: Engine switch on (IG)
      • Use this item to determine whether the IG relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG Relay Monitor (Inside) IG relay activation OFF or ON OFF: Engine switch off
      ON: Engine switch on (IG)
      • Use this item to determine whether the IG relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      Number of Diagnosis Code Number of DTCs 0 to 255 0 -

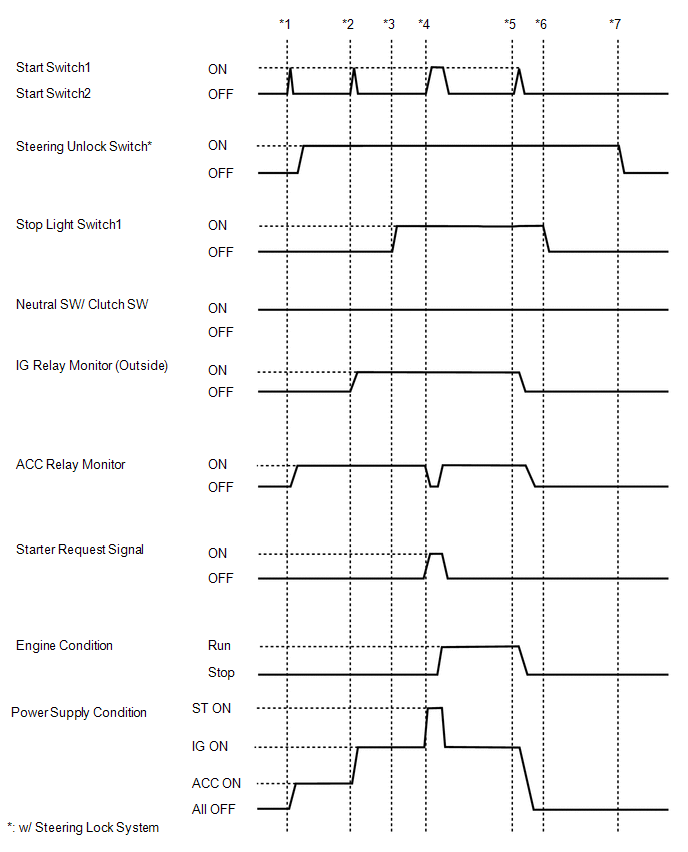

      Data List Display Changes when the Engine is Started:

      GTY1089145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

      *1: Press the engine switch with the brake pedal released and check that the engine switch is turned on (ACC).

      *2: Press the engine switch with the brake pedal released and check that the engine switch is turned on (IG).

      *3: Depress the brake pedal (stop light switch is on).

      *4: Press the engine switch with the brake pedal depressed and check that the engine starts.

      *5: Press the engine switch with the brake pedal depressed and check that the engine switch is turned off.

      *6: Release the brake pedal.

      *7: Open a door.

    6. Enter the following menus: Body Electrical / Smart Access / Data List.
    7. Read the Data List according to the display on the Techstream.
      SMART ACCESS

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Key Low Battery Transmitter battery depleted No or Yes No: Transmitter battery not depleted
      Yes: Transmitter battery depleted      		 The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is transmitting. The certification ECU (smart key ECU assembly) displays "Yes" for the "Key Low Battery" item of the Data List when this voltage information indicates 2.2 V or less. This Data List item should be checked when the electrical key transmitter sub-assembly is at room temperature (example: at -20°C (-4°F), "Yes" may be displayed even if the transmitter battery is new).
      "Yes" can be displayed only when the Data List item "No Response" is "No".
      # Codes Number of DTCs 0 to 255 0 -
      Immobiliser Immobiliser system status determined by certification ECU (smart key ECU assembly) Set or Unset Set: Immobiliser set (engine start prohibited) (engine switch off)
      Unset: Immobiliser unset (engine start permitted) (engine switch on (ACC) or on (IG))      		 The engine cannot be started when Set is displayed.
      HINT:
      • The theft warning indicator light assembly (security indicator light) blinks when Set is displayed.
      • The theft warning indicator light assembly (security indicator light) is linked with set/unset of the immobiliser and not linked with lock/unlock of the steering.
      Steering Lock Sleep Cond Steering lock ECU (steering lock actuator assembly) sleep availability No or Yes No: Sleep not available
      Yes: Sleep available      		 w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Steering Lock Start Cond Steering lock ECU (steering lock actuator assembly) wake up signal status No or Yes No: Wake up signal not sent
      Yes: Wake up signal sent      		 w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Engine Start Condition Status of engine start permission signal determined by steering lock ECU (steering lock actuator assembly) and sent to ID code box (immobiliser code ECU) NG or OK NG: Engine start prohibited
      OK: Engine start permitted      		 w/ Steering Lock System:
      • When OK is displayed, the certification ECU (smart key ECU assembly) receives an unlock confirmation signal from the steering lock ECU (steering lock actuator assembly) and makes engine starting possible.
      • The engine cannot be started when NG is displayed.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Sensor Value History of malfunction of position sensor in steering lock ECU (steering lock actuator assembly) (DTC B2781 is stored) OK or NG(Past) OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator assembly) does not exist.
      NG(Past): History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator assembly) being on exists. (Under normal operation, neither sensor is on.)      		 w/ Steering Lock System:
      1. When NG(Past) is displayed, either the position sensor in the steering lock ECU (steering lock actuator assembly) or the assembly itself may be malfunctioning.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Power Supply Short History of signal error (short) sent from certification ECU (smart key ECU assembly) to steering lock ECU (steering lock actuator assembly) (DTC B2782 is stored) OK or NG(Past) OK: History of motor power source short does not exist
      NG(Past): History of motor power source short exists      		 w/ Steering Lock System:
      1. This item displays history of a malfunction in the circuit between the certification ECU (smart key ECU assembly) and the steering lock ECU (steering lock actuator assembly).

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Motor Driver Short History of malfunction (short) in steering lock ECU (steering lock actuator assembly) motor circuit (DTC B2781 is stored) OK or NG(Past) OK: History of short in the motor circuit does not exist
      NG(Past): History of short in the motor circuit exists      		 w/ Steering Lock System:
      1. This item displays history of a malfunction in the steering lock motor circuit in the steering lock ECU (steering lock actuator assembly).

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Lock/Unlock Receive History of receiving an unlock request signal No or Yes No: History of receiving an unlock request signal does not exist
      Yes: History of receiving an unlock request signal exists      		 w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Lock Bar Stuck Error History of steering not being able to unlock properly when steering lock operates for a certain period of time OK or NG(Past) OK: History of steering lock being stuck does not exist
      NG(Past): History of steering lock being stuck exists      		 w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Engine Start Request Request to certification ECU (smart key ECU assembly) to permit ECM to start engine OK or NG OK: Signal received
      NG: Signal not received      		 w/ Steering Lock System:
      • When OK is displayed, the ID code box (immobiliser code ECU) receives an unlock confirmation signal from the steering lock ECU (steering lock actuator assembly) and makes fuel injection and engine starting possible.
      • The engine cannot be started when NG is displayed.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      S Code Check S code verification result OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered, or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the engine cannot be started).
      L Code Check w/ Steering Lock System:
      1. Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator assembly)*8

      w/o Steering Lock System:
      1. L code verificationresult
      		 OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      w/ Steering Lock System:
      • The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator assembly) is not registered, or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator assembly) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the engine cannot be started).

      w/o Steering Lock System:
      • The ID code box (immobiliser code ECU) is malfunctioning.
      • The engine cannot be started.
      Unlock Request Receive Unlock request signal received state OK or NG OK: Unlock request signal received within 10 seconds of engine switch on (IG) or on (ACC), or of an engine start operation being performed
      NG: Engine switch not turned on (IG) or on (ACC), and engine start operation not performed      		 w/ Steering Lock System:
      • The engine cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Lock Request Receive Lock request signal received state OK or NG OK: Lock request signal received for 10 seconds of any of the doors being opened with shift lever in P* and engine switch off.
      NG: Except above      		 w/ Steering Lock System:
      1. If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      S Code Check(Past) Verification result history between the certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU) OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 -
      L Code Check(Past) w/ Steering Lock System:
      1. Verification result history between the certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator assembly)

      w/ Steering Lock System:
      1. Verification resulthistory L
      		 OK or NG(Past) OK: History of abnormal verification result does not exist
      NG(Past): History of abnormal verification result exists      		 w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Steering Lock Steering lock ECU (steering lock actuator assembly) lock confirmation status Unset or Set Unset: Lock not confirmed
      Set: Lock confirmed      		 w/ Steering Lock System:
      1. When Unset is displayed, the steering is not locked.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Steering Unlock Steering lock ECU (steering lock actuator assembly) unlock confirmation status Unset or Set Unset: Unlock not confirmed
      Set: Unlock confirmed      		 w/ Steering Lock System:
      1. When Unset is displayed, the steering is not unlocked (the engine cannot be started).

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.
      Engine Start Indicator Entry warning light OFF or ON Customization status displayed -
      Open in IG2 History of IG2 input of the steering lock ECU (steering lock actuator assembly) OK or NG(Past) OK: History of open in IG2 exists
      NG(Past): No history of open in IG2 exists      		 w/ Steering Lock System:
      1. When OK is displayed, the steering lock ECU (steering lock actuator assembly) has an IG2 input circuit malfunction.

      w/o Steering Lock System:
      1. Although the item is displayed on the Techstream, it is not applicable to this vehicle.

      w/ Steering Lock System:

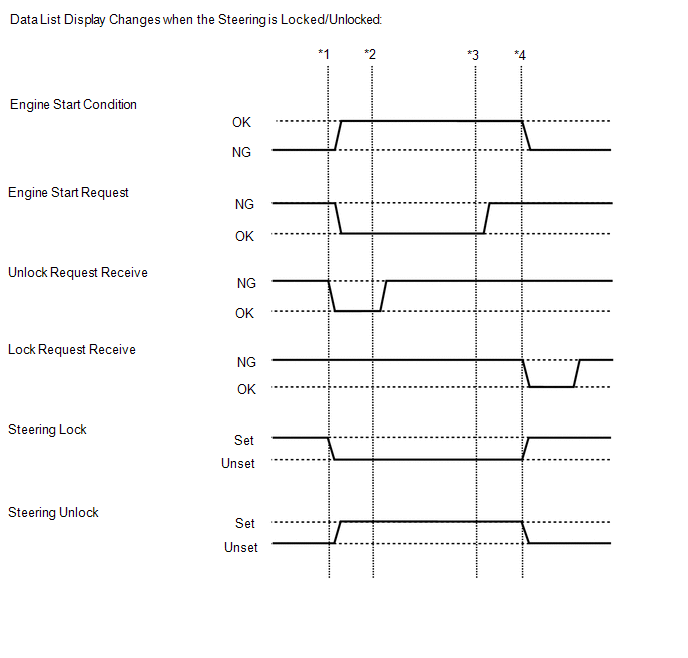

      GTY1093370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

      *1: Press the engine switch with the brake pedal released and check that the engine switch turns on (ACC).

      *2: Press the engine switch with the brake pedal released and check that the engine switch turns on (IG).

      *3: Press the engine switch and check that the engine switch turns off.

      *4: Release the brake pedal, open the driver side door and check that the steering locks.

    8. Enter the following menus: Body Electrical / Starting Control / Data List.
    9. Read the Data List according to the display on the Techstream.
      STARTING CONTROL

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Starter SW Starter operation request OFF or ON OFF: Starter operation not requested
      ON: Starter operation requested      		 When malfunctioning, the engine will not crank.
      Shift Position P or N Park/Neutral position switch status OFF or ON OFF: Shift lever not in P
      ON: Shift lever in P      		 When malfunctioning, the engine will not crank.
      Starter Relay Starter relay voltage monitor OFF or ON OFF: ST relay off
      ON: ST relay on      		 OFF is displayed when the engine cannot crank.
      Starting Control SW Starter request signal monitor OFF or ON OFF: Starting control switch off
      ON: Starting control switch on      		 When malfunctioning, the engine will not crank.
      Ignition IG2 status OFF or ON OFF: IG2 relay off
      ON: IG2 relay on      		 -
      Engine Speed Engine speed 0 to 16383 rpm Fluctuates in accordance with engine speed -
      Number of DTCs Number of DTCs 0 to 255 0 -
      Fig 1: Data List Display
      GTY454184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      *: With the engine switch on (IG), the shift lever in P and the brake pedal depressed, press the engine switch and check that the engine starts.

    10. Enter the following menus: Body Electrical / Combination Meter / Data List.
    11. Read the Data List according to the display on the Techstream.
      COMBINATION METER

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Vehicle Speed Meter Vehicle speed Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Almost same as actual vehicle speed (Speedometer tester) -
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Power Source Control / Active Test.
    5. Perform the Active Test according to the display on the Techstream.
      POWER SOURCE CONTROL

      Tester Display Measurement Item Control Range Diagnostic Note
      P Supply for Steering Lock Certification ECU (smart key ECU assembly) OFF/ON
      HINT:
      OFF: Power is not supplied.
      ON: Power is supplied.      		 When performing this Active Test, make sure the following condition is met:
      The engine switch is on (IG).
    6. Enter the following menus: Body Electrical / Smart Access / Active Test.
    7. Perform the Active Test according to the display on the Techstream.
      SMART ACCESS

      Tester Display Measurement Item Control Range Diagnostic Note
      Overhead Tuner Power Supply ON Door control receiver OFF/ON -
      Power/Engine SW Light Engine switch light OFF/ON When performing this Active Test, make sure the following conditions are met:
      The engine switch illumination is off (15 seconds or more have elapsed since it turned from on to off) and the engine switch is on (ACC) or on (IG), or the engine is started.
    8. Enter the following menus: Body Electrical / Starting Control / Active Test.
    9. Perform the Active Test according to the display on the Techstream.
      STARTING CONTROL

      Tester Display Measurement Item Control Range Diagnostic Note
      Activate the Starter Relay ST relay OFF/ON The electrical key transmitter sub-assembly is in the cabin and the engine is stopped.
scientia non olet · About LEMON Manuals
