ECU Power Source Circuit [08/2019 - ]: Wiring Diagram

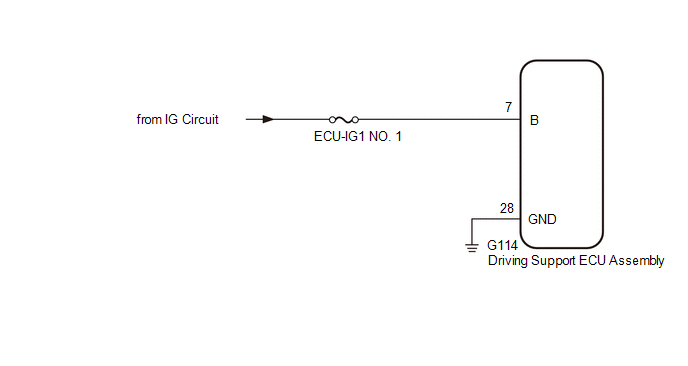

GTY955440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
