System Diagram [09/2022 - ]

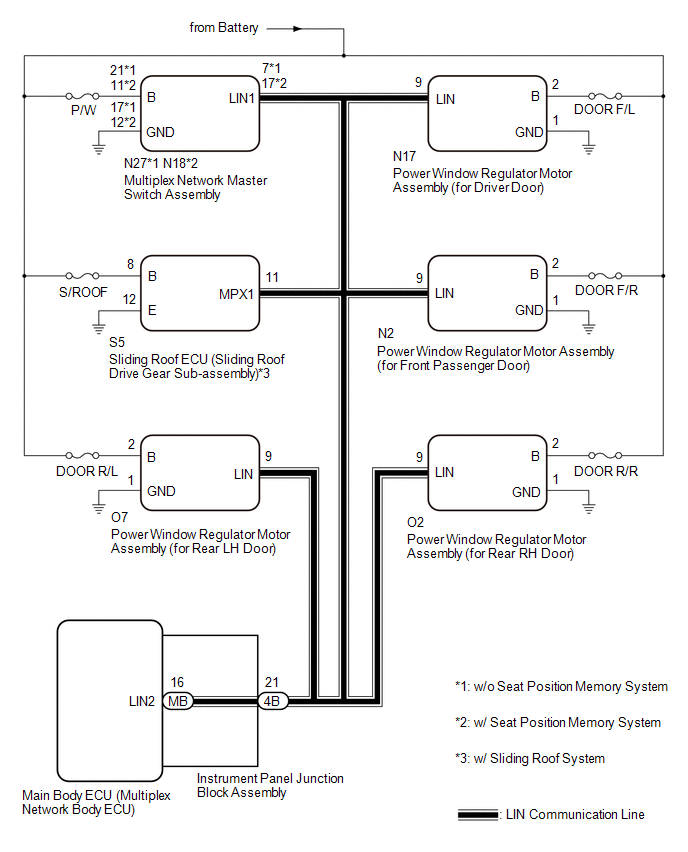

  1. DOOR BUS LINES
    GTY469867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

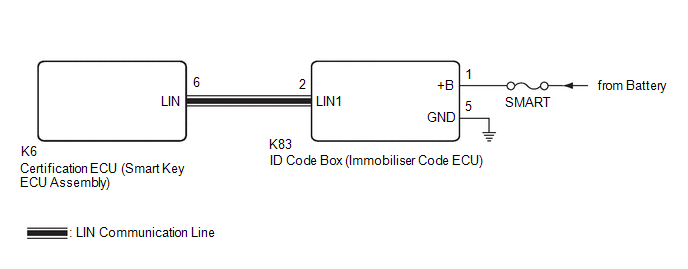

  2. CERTIFICATION BUS LINES
    GTY1138182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
