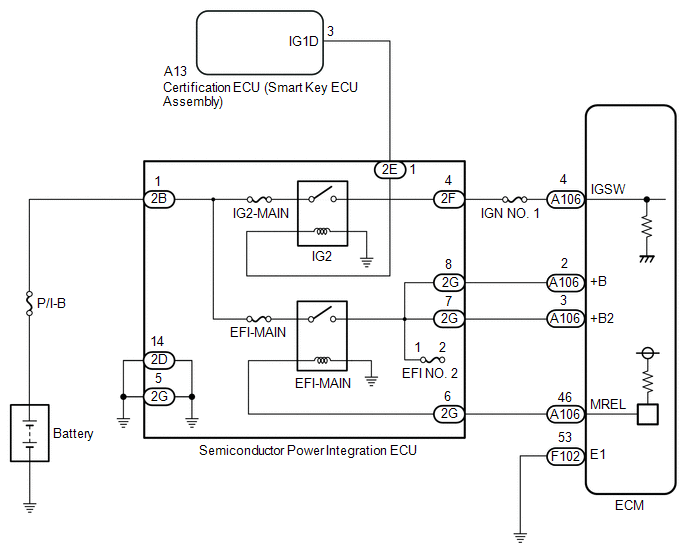

ECM Power Source Circuit [10/2017 - ]: Wiring Diagram

GTY784511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
