VC Output Circuit [10/2017 - ]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
WIRING DIAGRAM

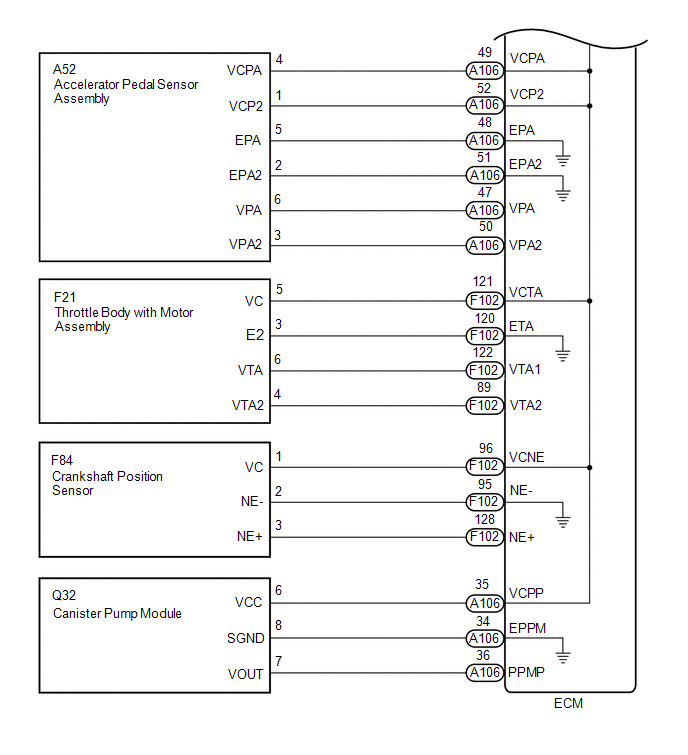

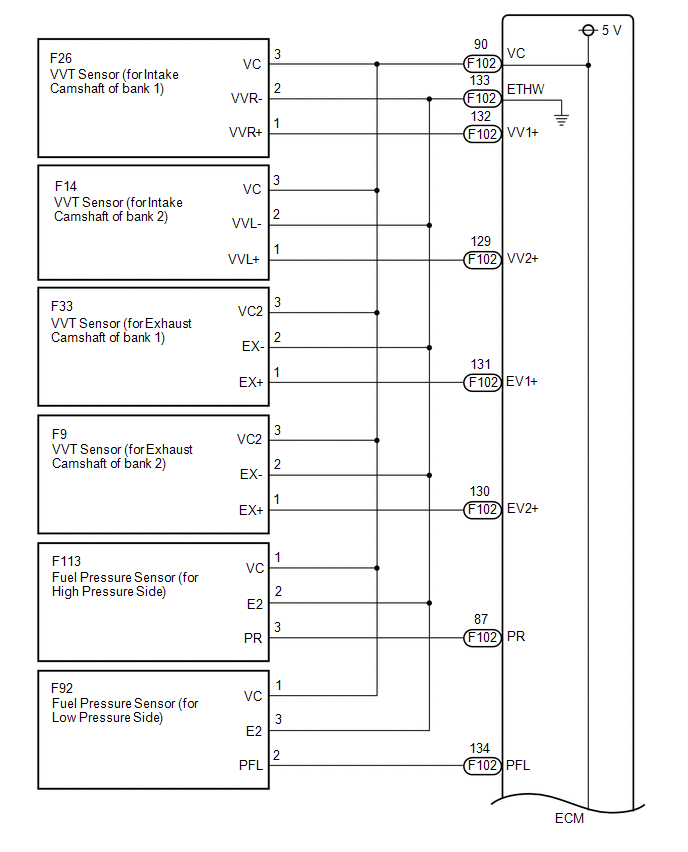

VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
