Engine Control System (2GR-FKS) - Diagnostic Codes (6 Of 7)
>>
SFI System
>>
DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [10/2017 - 09/2020]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

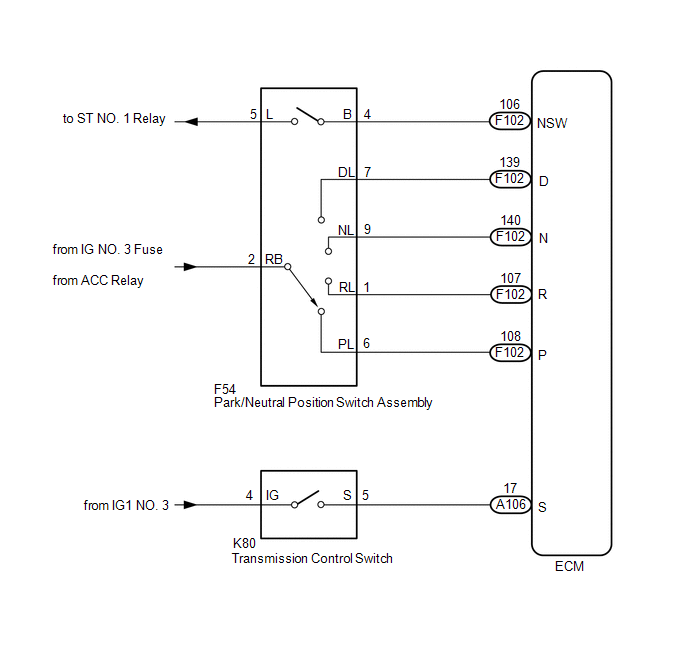

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [10/2017 - 09/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
