Components [04/2013 - 09/2020]

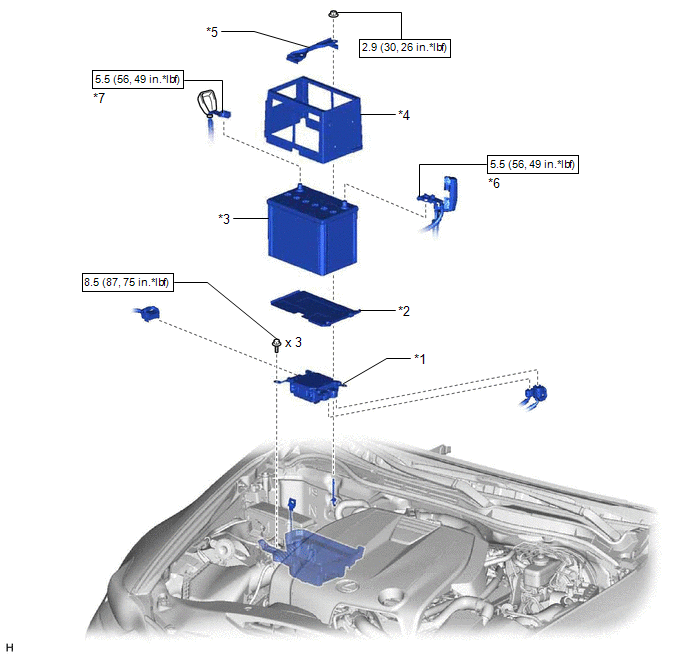

Fig 1: Power Steering ECU Replacement Components With Torque Specifications [04/2013 - 09/2020]
GTY470767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POWER STEERING ECU ASSEMBLY *2 NO. 1 BATTERY TRAY SUPPORT
*3 BATTERY *4 BATTERY INSULATOR
*5 BATTERY CLAMP *6 POSITIVE BATTERY TERMINAL
*7 NEGATIVE BATTERY TERMINAL - -
N.m (kgf/cm, ft.lbf): Specified torque - -
