Removal [04/2013 - 10/2016]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Lexus IS 350, 2016 Lexus IS 300, 2016 Lexus IS 200t, 2015 Lexus IS 350, and 2015 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION
Refer to PRECAUTION [04/2013 - 06/2014] , or refer to PRECAUTION [06/2014 - 10/2016]
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [04/2013 - ]
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3
- REMOVE FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 7
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 25

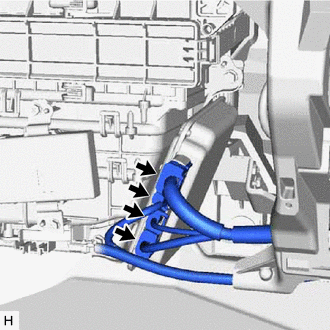

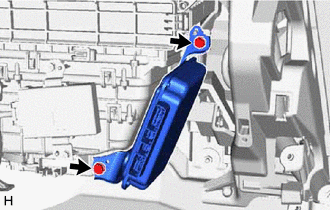

- REMOVE FRONT STEERING CONTROL ECU
