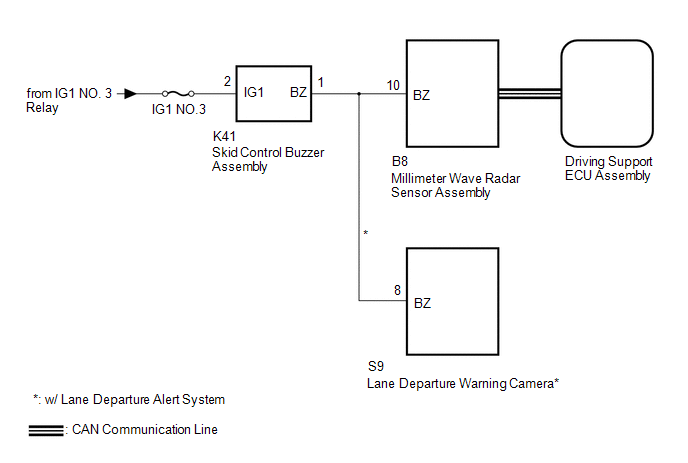

DTC C1A4A: Skid Control Buzzer Circuit [04/2013 - 10/2016]: Wiring Diagram

GTY459370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
