System Diagram [09/2020 - 11/2021]

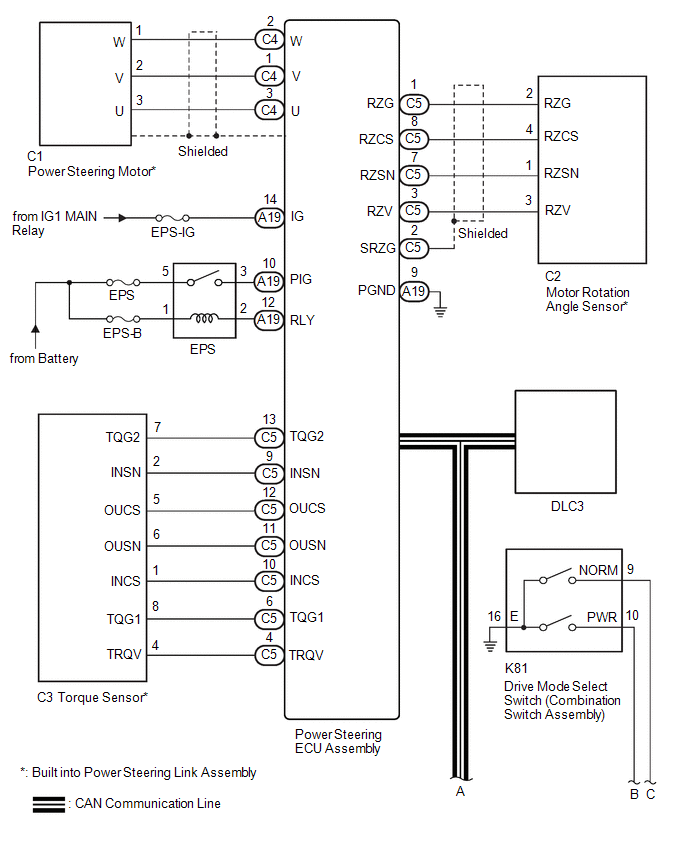

Fig 1: Power Steering System Diagram (1 Of 2)
GTY969499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

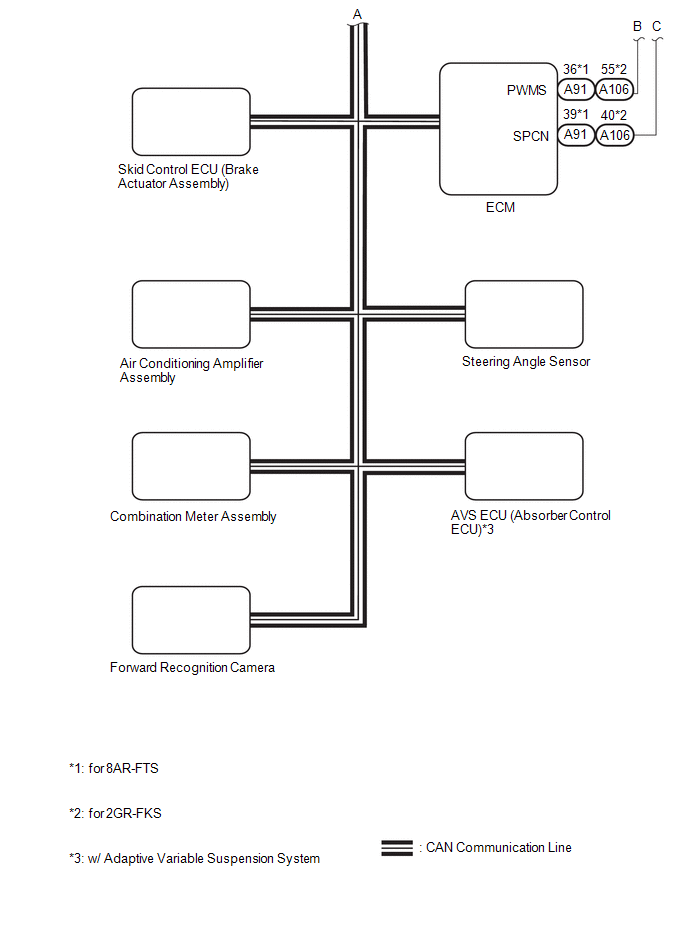

Fig 2: Power Steering System Diagram (2 Of 2)
GTY969432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
