Components [04/2013 - 09/2020]

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

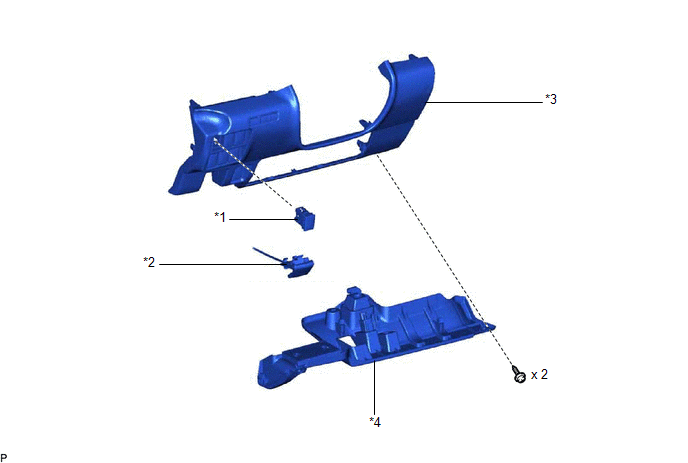

Fig 1: Automatic High Beam Main Switch Replacement Components [04/2013 - 09/2020]
GTY464666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTO HIGH BEAM SWITCH *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
