Removal [06/2014 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE AIR INTAKE DUCT

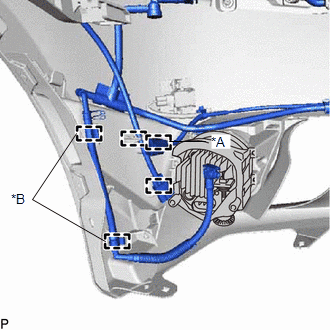

    1. Disengage each clamp.
      GTY520144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Intuitive Parking Assist System
      *B w/ Headlight Cleaner System

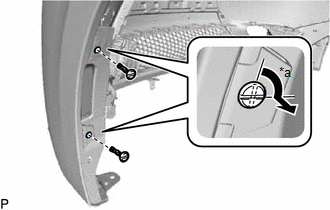

    2. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
      GTY457804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°

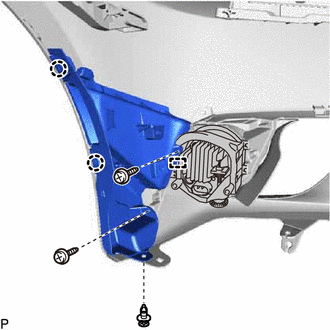

    3. Remove the 2 screws.
      GTY501256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clip.
    5. Disengage the 2 claws and guide to remove the air intake duct.
  3. REMOVE FOG LIGHT ASSEMBLY

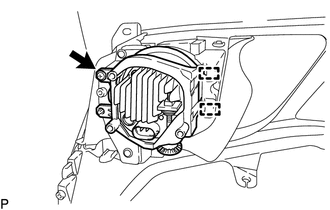

    1. Remove the screw.
      GTY498895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the fog light assembly.
