Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

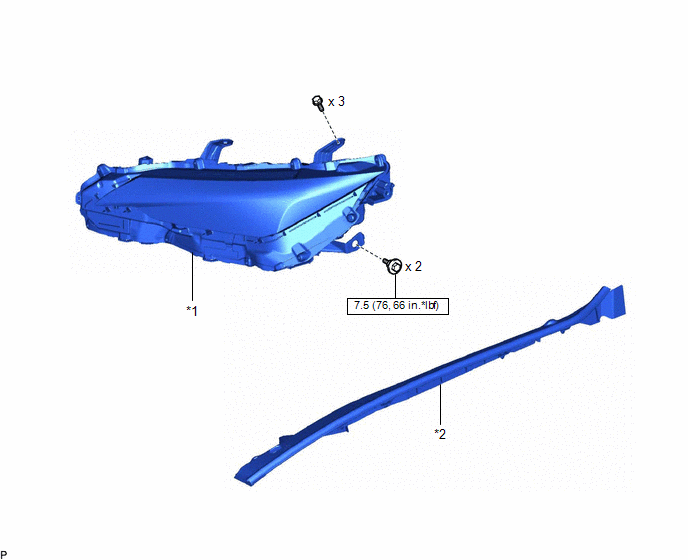

| *1 |
HEADLIGHT ASSEMBLY |
*2 |
UPPER FRONT FENDER PROTECTOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

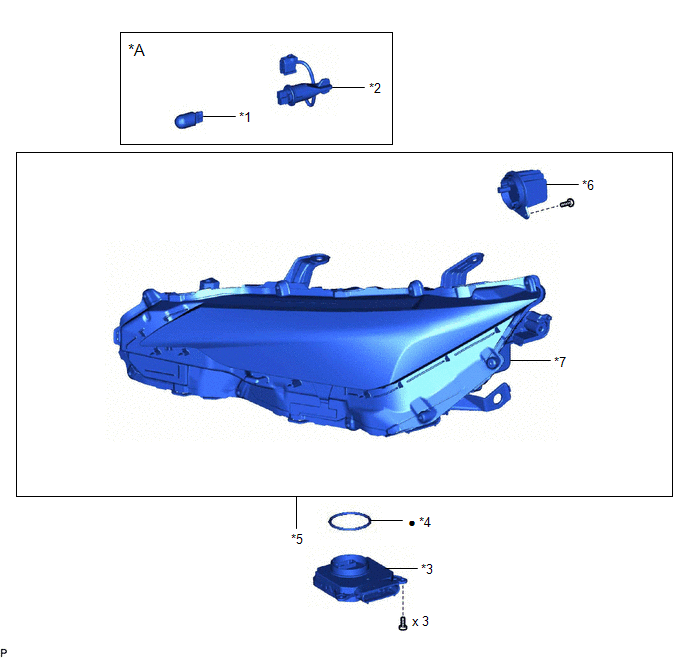

| *A |
for Bulb Type Turn Signal Light |
- |
- |
| *1 |
FRONT TURN SIGNAL LIGHT BULB |
*2 |
HEADLIGHT CORD |
| *3 |
HEADLIGHT ECU SUB-ASSEMBLY |
*4 |
HEADLIGHT GASKET |
| *5 |
HEADLIGHT UNIT ASSEMBLY |
*6 |
NO. 1 HEADLIGHT CLEARANCE LED UNIT |
| *7 |
HEADLIGHT UNIT |
- |
- |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

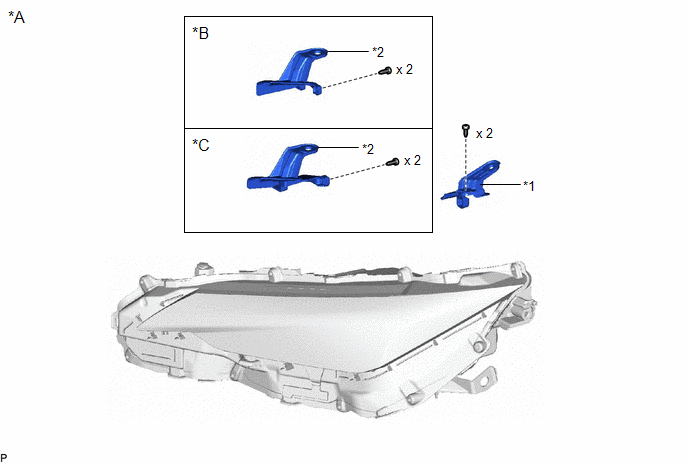

| *A |
Bracket for Repair |
*B |
for Single Beam Headlight |
| *C |
for Triple Beam Headlight |
- |
- |
| *1 |
UPPER HEADLIGHT PROTECTOR RETAINER |
*2 |
UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER |
