Components [10/2016 - 09/2018]

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlight Assembly Replacement Components With Torque Specifications [10/2016 - 09/2018] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY	*2	UPPER FRONT FENDER PROTECTOR
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

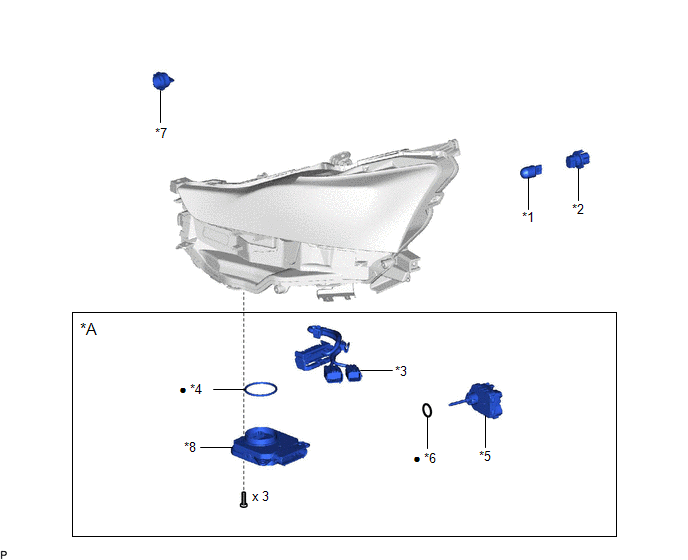

Fig 2: Headlight Assembly Replacement Components [10/2016 - 09/2018] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o AFS	-	-
*1	FRONT TURN SIGNAL LIGHT BULB	*2	FRONT TURN SIGNAL LIGHT SOCKET
*3	HEADLIGHT CORD	*4	HEADLIGHT GASKET
*5	HEADLIGHT LEVELING MOTOR	*6	HEADLIGHT LEVELING MOTOR BASE PACKING
*7	NO. 1 HEADLIGHT BACK COVER	*8	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY
•	Non-reusable part	-	-

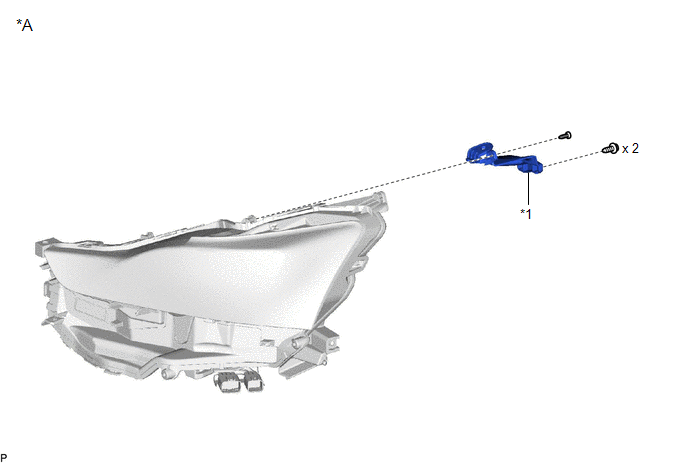

Fig 3: Headlight Assembly Replacement Components [10/2016 - 09/2018] (3 Of 3)

*A	Bracket for Repair	-	-
*1	UPPER HEADLIGHT PROTECTOR RETAINER	-	-
