Reassembly [09/2018 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT LEVELING MOTOR BASE PACKING (w/o AFS)
    1. Install a new headlight leveling motor base packing.
  2. INSTALL HEADLIGHT LEVELING MOTOR (w/o AFS)
    1. for Bulb Type Turn Signal Light:
      1. Insert the headlight leveling motor in the direction indicated by the arrow (1) shown in the illustration.
        GTY611803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Aiming Screw
      2. Turn the aiming screw of the headlight leveling motor in the direction indicated by the arrow (2) shown in the illustration to engage the shaft.

        HINT:

        Turn the aiming screw the same number of times as it was turned during removal.

      3. Turn the headlight leveling motor in the direction indicated by the arrow (3) shown in the illustration and engage the pin to install the headlight leveling motor to the headlight assembly.
        GTY651927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Aiming Screw

        HINT:

        When installing the headlight leveling motor of the headlight assembly RH, turn the headlight leveling motor in the opposite direction of the arrow (3) shown in the illustration.

      4. Turn the aiming screw of the headlight leveling motor in the direction indicated by the arrow (4) shown in the illustration to install it.

        HINT:

        Turn the aiming screw the same number of times as it was turned during removal.

      5. Connect the connector.
        GTY638880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for LED Type Turn Signal Light:

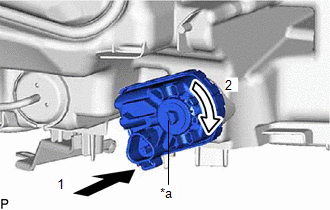

      1. Insert the headlight leveling motor in the direction indicated by the arrow (1) shown in the illustration.
        GTY800446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Aiming Screw
      2. Turn the aiming screw of the headlight leveling motor in the direction indicated by the arrow (2) shown in the illustration to engage the shaft.

        HINT:

        Turn the aiming screw the same number of times as it was turned during removal.

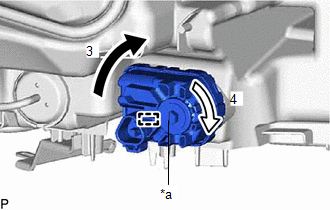

      3. Turn the headlight leveling motor in the direction indicated by the arrow (3) shown in the illustration and engage the pin to install the headlight leveling motor to the headlight assembly.
        GTY809576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Aiming Screw

        HINT:

        When installing the headlight leveling motor of the headlight assembly RH, turn the headlight leveling motor in the opposite direction of the arrow (3) shown in the illustration.

      4. Turn the aiming screw of the headlight leveling motor in the direction indicated by the arrow (4) shown in the illustration to install it.

        HINT:

        Turn the aiming screw the same number of times as it was turned during removal.

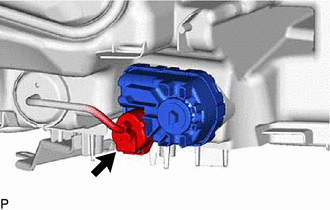

      5. Connect the connector.
        GTY797608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)
  4. INSTALL FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the front turn signal light bulb to the front turn signal light socket.
    2. Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
      GTY638872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
      GTY638870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 HEADLIGHT BACK COVER
    1. Turn the No. 1 headlight back cover as shown in the illustration to install it.
      GTY645747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL HEADLIGHT GASKET (w/o AFS)

    See step  1

  7. INSTALL HEADLIGHT CORD (w/o AFS)
  8. INSTALL NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (w/o AFS)

    See step  3
