Reassembly [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 HEADLIGHT CLEARANCE LED UNIT

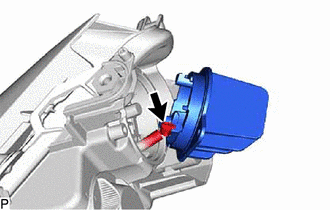

    1. Connect the connector.
      GTY970675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

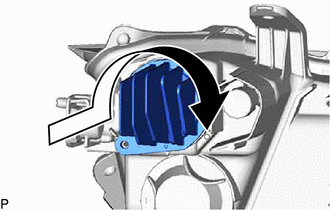

    2. Turn the No. 1 headlight clearance LED unit as shown in the illustration to install it.
      GTY970974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

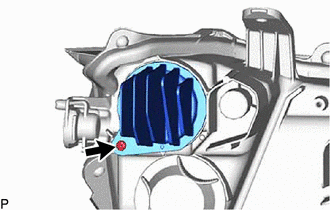

    3. Using a T20H "TORX" driver, install the "TORX" screw.
      GTY970971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEADLIGHT UNIT ASSEMBLY
  3. INSTALL HEADLIGHT CORD (for Bulb Type Turn Signal Light)

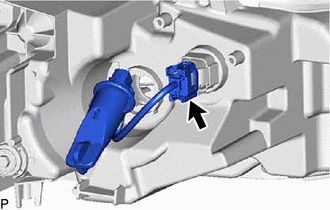

    1. Connect the connector to install the headlight cord.
      GTY970973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
    1. Install the front turn signal light bulb to the headlight cord.

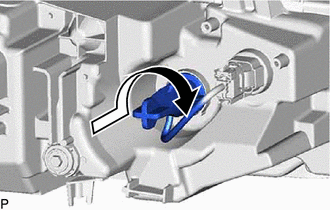

    2. Turn the headlight cord with the front turn signal light bulb as shown in the illustration to install them as a unit.
      GTY970979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL HEADLIGHT GASKET

    See step  1

  6. INSTALL HEADLIGHT ECU SUB-ASSEMBLY

    See step  2
