Removal [10/2016 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT BUMPER ASSEMBLY
for Standard: Refer to REMOVAL [10/2016 - 09/2020]

for Sport Package: Refer to REMOVAL [10/2016 - 09/2020]

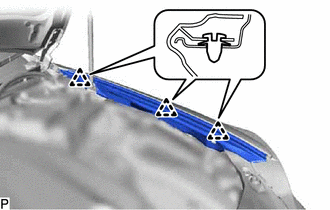

REMOVE UPPER FRONT FENDER PROTECTOR

Disengage the 3 clips to remove the upper front fender protector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

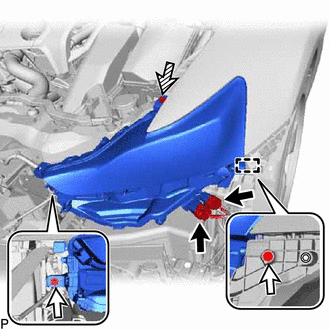

REMOVE HEADLIGHT ASSEMBLY

Disconnect the 2 connectors.

	Bolt
	Screw

Remove the 2 bolts and screw.
Disengage the guide to remove the headlight assembly.
