Repair [09/2020 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

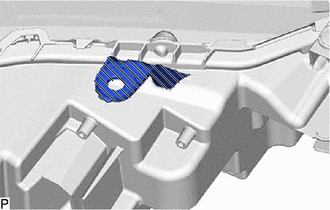

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
HINT:
After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

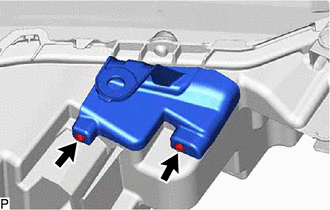

- Install the upper headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER (for Single Beam Headlight)

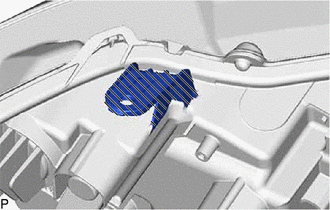

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
HINT:
After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

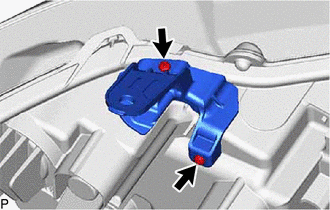

- Install the upper No. 2 headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER (for Triple Beam Headlight)

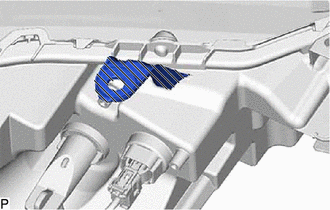

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
HINT:
After cutting off the part, place the upper No. 2 headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

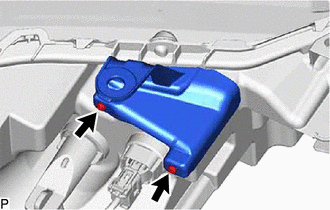

- Install the upper No. 2 headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
