Repair [10/2016 - 09/2018]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

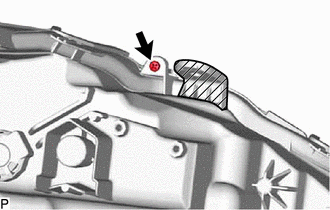

    1. Remove the screw.
      GTY778753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the removed screw.

    2. Cut off the part shaded in the illustration and sand smooth with sandpaper.

      HINT:

      After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

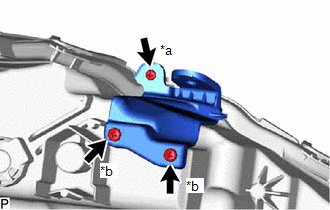

    3. Install the upper headlight protector retainer with the screw (A) and 2 screws (B).
      GTY824927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw (A)
      *b Screw (B)
      NOTE:

      Make sure to use only the screws which were supplied with the upper headlight protector retainer.

        Diameter Length
      Screw (A) 3 mm (0.118 in.) 12 mm (0.472 in.)
      Screw (B) 5 mm (0.197 in.) 16 mm (0.630 in.)
