Installation [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY
    1. Engage the guide to temporarily install the headlight leveling ECU assembly.
    2. Install the headlight leveling ECU assembly with the bolt and nut.
    3. Engage the clamp.
    4. Connect the connector.
    5. Engage the 2 clips to connect the connector holder.
    6. Install the No. 3 dash panel insulator pad.

      Refer to PROCEDURE - Step 12 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 12 [08/2015 - 10/2016]

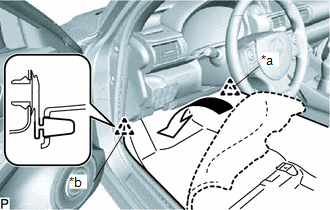

    7. Install the front floor mat to the original position as shown in the illustration.
      GTY468150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Clip (B)
    8. Engage the clip (B).
    9. Install the clip (A).
  2. INSTALL ACCELERATION SENSOR (w/ AVS)

    Refer to PROCEDURE - Step 1

  3. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to PROCEDURE - Step 19 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 19 [08/2015 - 10/2016]

  4. INSTALL ACCELERATOR PEDAL PAD

    Refer to PROCEDURE - Step 20 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 20 [08/2015 - 10/2016]

  5. INSTALL FLOOR CARPET HOOK

    Refer to PROCEDURE - Step 18 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 18 [08/2015 - 10/2016]

  6. INSTALL FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 28 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 28 [08/2015 - 10/2016]

  7. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 29 [08/2015 - 10/2016]

  8. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 9

  9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 13

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ AVS)
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016]

  11. INITIALIZE HEIGHT CONTROL SENSOR SIGNAL

    Refer to INITIALIZATION [04/2013 - 10/2016]

  12. ADJUST HEADLIGHT AIMING (for HID Headlight)

    Refer to ADJUSTMENT [04/2013 - 10/2016]

  13. ADJUST HEADLIGHT AIMING (for LED Headlight)

    Refer to ADJUSTMENT [04/2013 - 10/2016]
