Components [04/2013 - ]

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

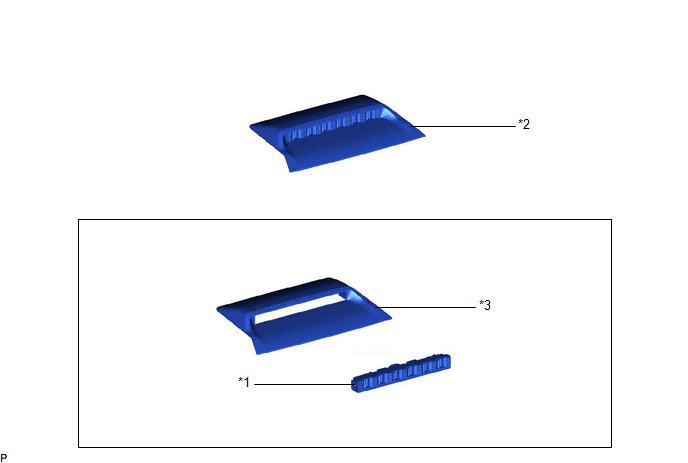

Fig 1: High Mounted Stop Light Assembly Replacement Components
GTY469466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER STOP LIGHT ASSEMBLY *2 CENTER STOP LIGHT ASSEMBLY WITH COVER
*3 CENTER STOP LIGHT COVER - -
