Inspection [04/2013 - 09/2020]: Procedure
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT LICENSE PLATE LIGHT ASSEMBLY
- Apply battery voltage to the license plate light assembly and check that the light comes on.

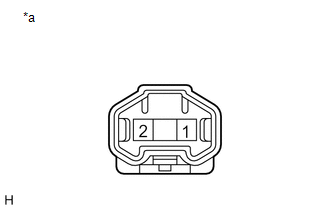

*a Component without harness connected
(License Plate Light Assembly)OK
Condition Specified Condition Battery positive (+) → Terminal 1
Battery negative (-) → Terminal 2License plate light comes on If the result is not as specified, replace the license plate light assembly.
- Apply battery voltage to the license plate light assembly and check that the light comes on.
